JET JT1-2060 Description
The JET JDP-20S Smart Drill Press delivers a 20 inch swing, 6 inch spindle travel, and variable speed control via an intuitive 5 inch touchscreen, with LED work light, laser guides, and a tilting cast iron table.
JET JT1-2060 Includes
- (1) 20 Inch Smart Drill Press
JET JT1-2060 Features
- 5 inch touchscreen with guided RPM setup and presets
- Continuously variable speed from 150–3000 RPM
- 20 inch swing and 6 inch spindle travel

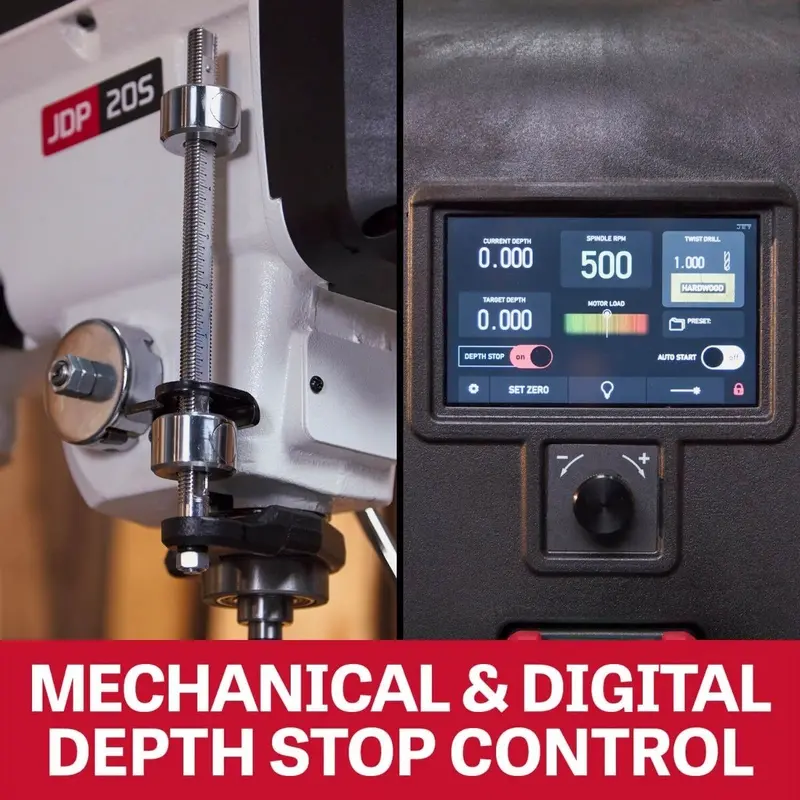

- Mechanical and digital depth stops
- 90 Degree tilting cast iron table
- Integrated LED work light
- Crosshair laser guides
- Password-protected settings
- Single-phase 1.5 HP brushless motor
- Heavy-duty cast iron construction
- Floor style design
JET JT1-2060 Specifications
| Swing | 20 in. |
| Spindle Travel | 6 in. |
| Table Size | 20 in. x 14 in. |
| Chuck Size | 5/8 in. |
| Column Diameter | 3.35 in. |
| Spindle Distance to Base | 46.45 in. |
| Spindle Distance to Table (Max) | 27.6 in. |
| Chuck Distance to Base | 42.9 in. |
| Chuck Distance to Table | 24 in. |
| Motor Power | 1-1/2 HP |
| Motor Phase | Single |
| Range of Spindle Speeds | Variable 150–3000 RPM |
| Recommended Circuit Size | 20 amps |
| Style | Floor |
| Gross Weight | 275 lbs |
| Net Weight | 220 lbs |
| Warranty | 5 Year |
