Description
Axiom Precision AX1-101 Description

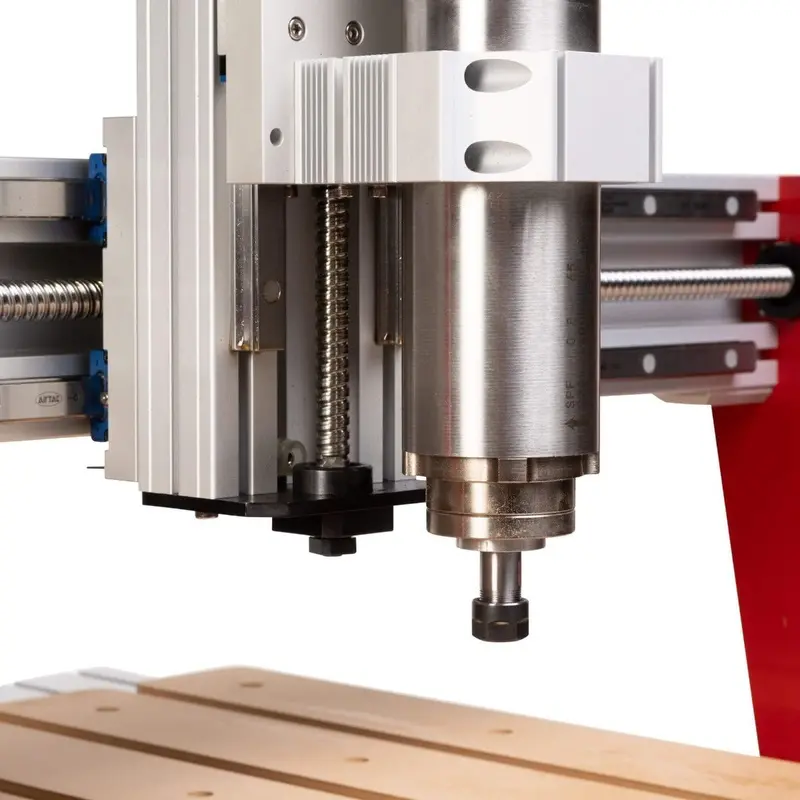

Compact industrial-grade 2′ x 2′ CNC router with a 24″ x 24″ work area, 1 HP air‑cooled spindle up to 24,000 RPM, ±0.007 in accuracy, and included UCCNC and Vectric VCarve Desktop software for fast, precise results.
Axiom Precision AX1-101 Includes
- (1) 2 x 2 CNC Router Table
- (1) UCCNC control software
- (1) Vectric VCarve Desktop software
- (1) 1/8 in collet
- (1) 1/4 in collet
Axiom Precision AX1-101 Features
- 24 in x 24 in cutting area with approximately 5.5 in Z travel
- ±0.007 in accuracy with precision ball screws on X/Y/Z
- Rigid all‑metal frame with extruded aluminum gantry
- 1 HP air‑cooled spindle, up to 24,000 RPM
- Prismatic linear guides for smooth, repeatable motion
- Includes UCCNC and Vectric VCarve Desktop (Windows)
- U.S.-based support
Axiom Precision AX1-101 Specifications
| Cutting Area | 24 in x 24 in |
| Z Travel | Approx. 5.5 in |
| Accuracy | +/-0.007 in. |
| Spindle Power | 1 HP |
| Spindle Speed | Up to 24,000 RPM |
| Input Power | 115V Single Phase |
| Motor Amps | 5 |
| Recommended Amps | 15 |
| Spindle Taper | ER11 |
| Tool Diameters | 1/8 in and 1/4 in |
| Travel Speed (Max Engraving) | 200 IPM |
| Precision Ball Screw Axis | X/Y/Z |
| Assembled Dimensions (L x W x H) | 31.5 x 35 x 31.5 in |
| Table Size | 24 in x 24 in |
| Net Weight | 165.3 lb |
