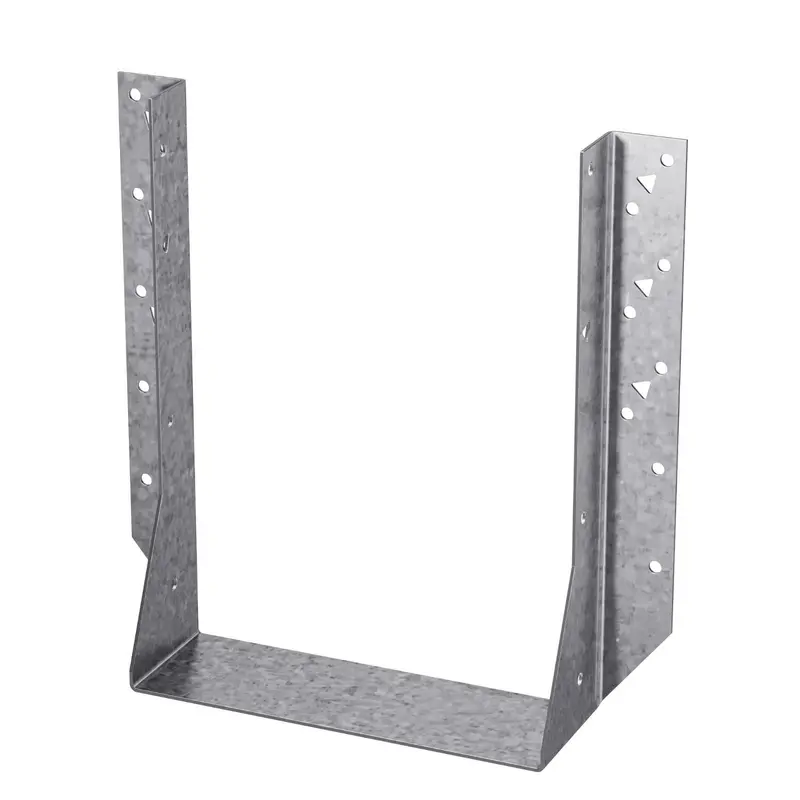

Simpson Strong-Tie HU814 Description
The Simpson Strong-Tie HU814 is a heavy-duty face-mount joist hanger designed for robust support in various construction applications. Made from 14-gauge steel with a G90 galvanized finish, it ensures durability and reliability.
Simpson Strong-Tie HU814 Includes
- (1) 8 x 14 Face Mount Joist Hanger
Simpson Strong-Tie HU814 Features
- G90 Galvanized Finish for corrosion resistance
- Versatile design for various joist sizes
- Code-compliant and load-rated for structural applications
Simpson Strong-Tie HU814 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson Strong-Tie HU814 Installation Overview
- Use hot-dip galvanized nails for maximum corrosion resistance.
- Install into masonry and concrete using specified Titen HD screws.
Simpson Strong-Tie HU814 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face – (24) 0.162″ x 3-1/2″ Nails, Joist – (12) 0.162″ x 3-1/2″ Nails |
| For Treated Lumber | No |
| Height | 11-7/8″ |
| Joist size | 8″ X 12″ |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 7-1/2″ |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
