Description
Simpson Strong-Tie HUS414TF Description

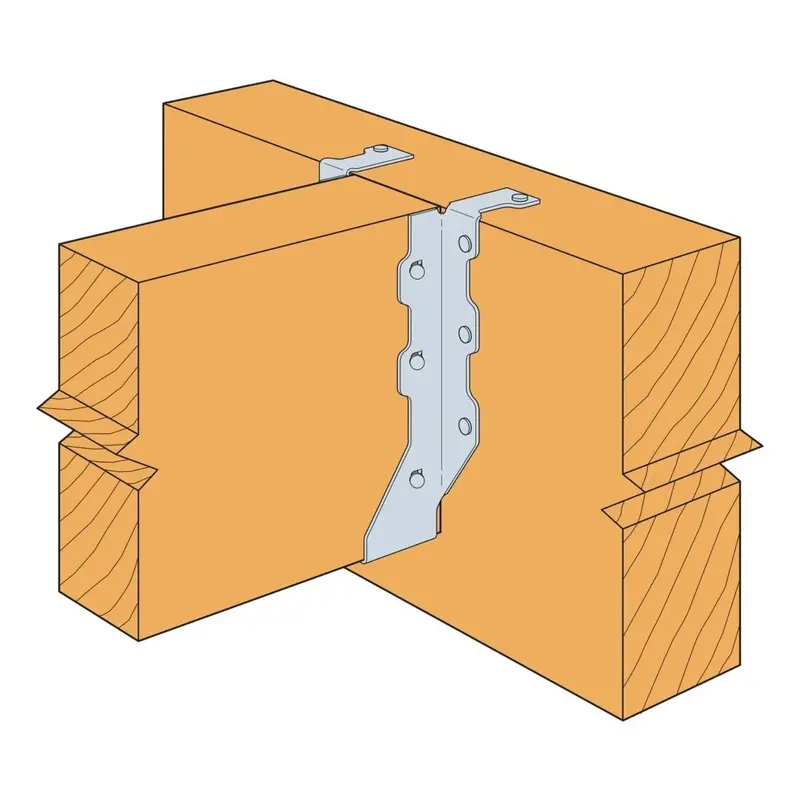

The HUS414TF Heavy U-Shaped Top Flange Hanger is designed for high-load applications, providing superior strength and stability in wood-to-wood connections. Made from G90 galvanized steel, it offers exceptional corrosion resistance for interior and dry environments.
Simpson Strong-Tie HUS414TF Includes
- (1) 4×14 Top Flange Face Mount Hanger
Simpson Strong-Tie HUS414TF Features
- Heavy-duty construction for high-load conditions
- G90 galvanized coating for corrosion resistance
- Full U-shaped wrap for optimal load distribution
- Optimized for solid sawn lumber
- Top flange design for secure installation
Simpson Strong-Tie HUS414TF Applications
- Floor framing: Connects joists to beams for enhanced stability
- Roof trusses and rafters: Provides strong connections in roof framing
- Commercial construction: Suitable for heavy-duty structural applications
- Industrial wood structures: Supports engineered wood beams
Simpson Strong-Tie HUS414TF Installation Overview
- Install using face nails or structural screws for secure connection
- Fasten joists with nails or screws in designated side holes
- Ensure the top flange sits flush against the supporting member
- Reference Simpson Strong-Tie’s load tables for performance verification
Simpson Strong-Tie HUS414TF Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face – (12) 0.162″ x 3-1/2″ Nails, Joist – (8) 0.162″ x 3-1/2″ Nails |
| For Treated Lumber | No |
| Height | 13-1/8″ |
| Joist size | 4″ X 14″ |
| Thickness | 14 Gauge |
| Width | 3-9/16″ |
