Description

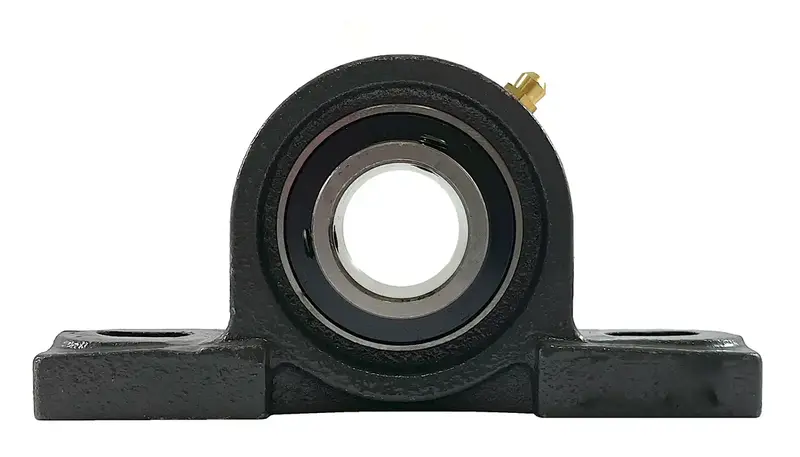

UCP206 bearing is a two-bolt normal duty pillow block bearing with a 30mm bore. It utilizes set-screws for locking onto a 30mm shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our UCP206 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCP206 pillow block bearings are utilized in a wide range of applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this UCP206 bearing is directly interchangeable with other brands. For further information or to get a quote on our UCP206 bearings contact our customer support team and we will be happy to assist you!
UCP206 Bearing Dimensions
- Part #: UCP 206
- Shaft Diameter (d): 30mm
- Dimension (H): 42.9mm
- Dimension (A): 160.0mm
- Dimension (E): 121.0mm
- Dimension (B): 42.0mm
- Dimension (S2): 20.0mm
- Dimension (S1): 14.0mm
- Dimension (G): 16.0mm
- Dimension (W): 84.0mm
- Dimension (Bi): 38.1mm
- Dimension (N): 15.9mm
- Dimension (M): 22.2mm
- Bolt Used: M12
- Dynamic Load Rating (kN): 19.47
- Static Load Rating (kN): 11.43
- Bearing Insert: UC 206
- Housing Number: P 206
- Weight (kg): 1.3
