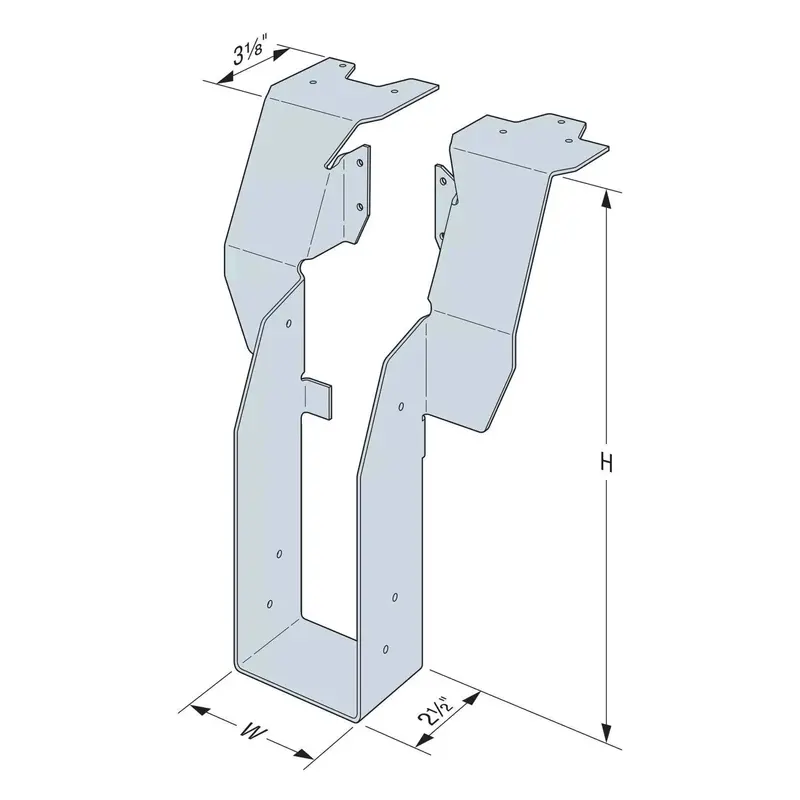

Top-Flange Fire Wall Hanger – 3-1/2″ X 18″, Engineered Wood Rated

Description

Simpson DGT3.62/18 Description

The Simpson DGT3.62/18 Top-Flange Fire Wall Hanger is designed for robust fire-rated connections in Type III residential constructions, ensuring structural integrity and compliance with fire-resistive standards.

Simpson DGT3.62/18 Includes

• (1) Top-Flange Fire Wall Hanger for Engineered Wood

Simpson DGT3.62/18 Features

• Two-hour fire rating for 2×4 or thicker walls
• Innovative top-flange design for back-to-back installation
• Space for two layers of 5/8″ drywall after framing
• Compatible with power-driven or hand-installed nails
• Made from 12-gauge galvanized steel

Simpson DGT3.62/18 Applications

• Multifamily Residential Buildings: Provides fire-rated connections essential for apartment complexes and condominiums.
• Commercial Structures: Ensures compliance with fire safety standards in offices and retail spaces.
• Type III Construction: Ideal for buildings requiring non-combustible exterior walls with interior wood framing.
• Retrofit Projects: Suitable for upgrading existing structures to meet fire safety standards.

Simpson DGT3.62/18 Installation Overview

1. Use all specified fasteners as per the manufacturer’s guidelines.
2. Install the hanger similarly to standard top-flange hangers.
3. Ensure stud wall-plate splices occur at stud locations.
4. For I-joist applications, web stiffeners are required.
5. When attaching to a steel header, weld the hanger using specified fillet welds and secure with joist nails.

Simpson DGT3.62/18 Specifications

NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values
