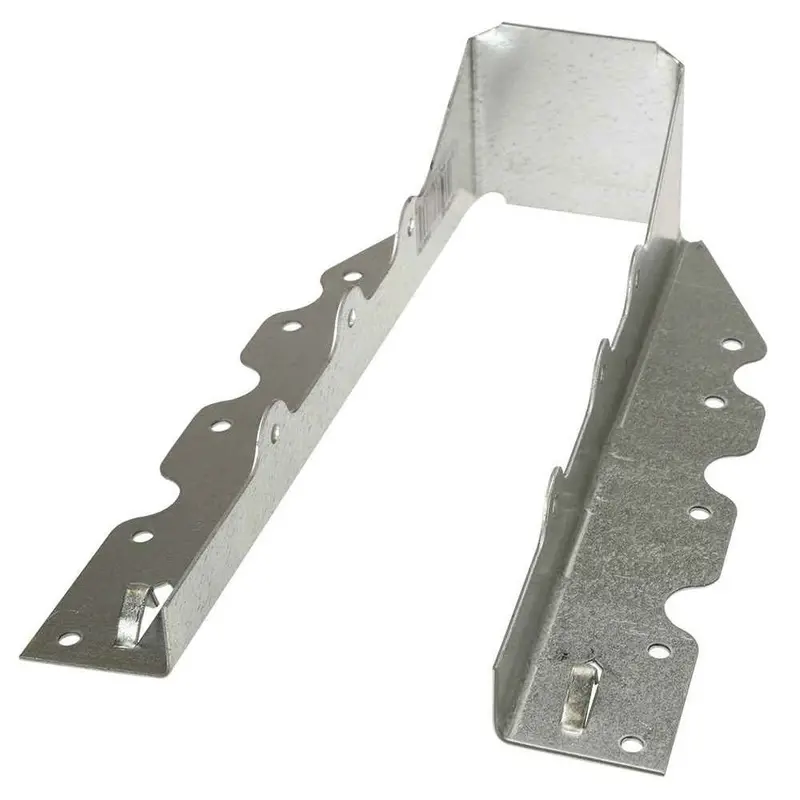

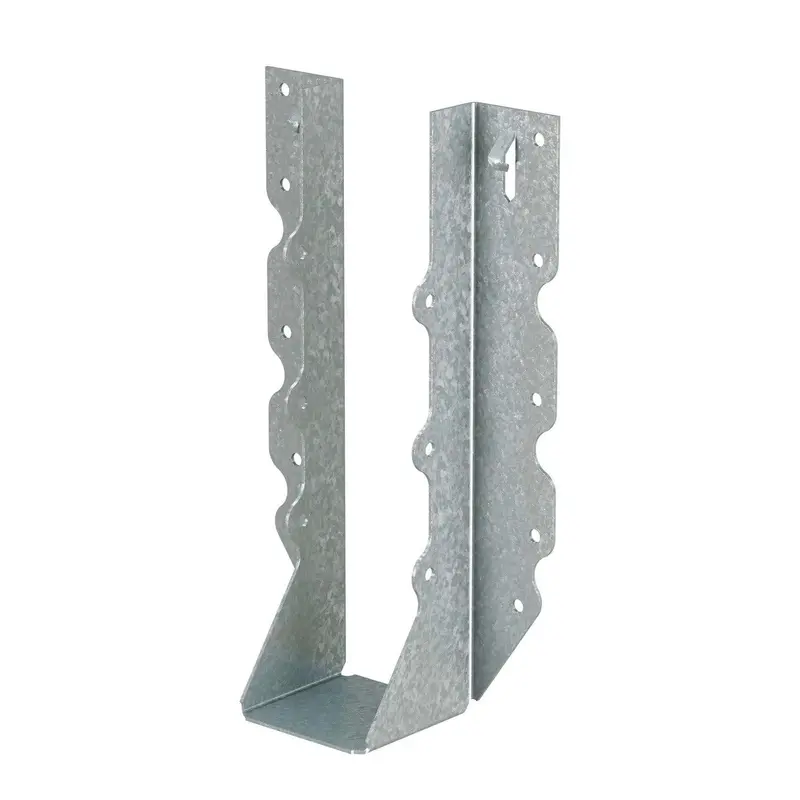

Simpson Strong-Tie LU210R-18 Description
Designed for applications using rough cut lumber, the Simpson LU210R-18 Light Face-Mount Joist Hanger delivers strong, reliable connections between joists and headers.
Simpson Strong-Tie LU210R-18 Includes
- (1) Rough Cut 2×10 Face Mount Joist Hanger
Simpson Strong-Tie LU210R-18 Features
- Optimized for Rough Cut Lumber: Specifically designed to fit non-standard, rough sawn wood sizes.
- Heavy-Duty Performance: Manufactured from durable steel with corrosion-resistant coating.
- Face-Mount Installation: Provides a solid, reinforced connection for enhanced strength and stability.
Simpson Strong-Tie LU210R-18 Applications
- Timber Framing: Ensures a secure fit for rough cut beams and joists.
- Deck Framing: Provides a strong connection for oversized joists in custom or rustic deck builds.
- Barn & Agricultural Structures: Ideal for rough cut lumber used in barn framing.
- Custom Woodworking Projects: Supports structurally sound connections in handcrafted wood structures.
Simpson Strong-Tie LU210R-18 Installation Overview
- Fastener Compatibility: Use specified nails or screws recommended by the manufacturer.
- Proper Fit: Position the hanger correctly to accommodate rough cut lumber dimensions.
- Secure Attachment: Fully drive all fasteners into the joist and header for maximum stability.
Simpson Strong-Tie LU210R-18 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header – (10) 0.162″ x 3-1/2″ Nails, Joist – (6) 0.148″ x 1-1/2″ Nails |
| For Treated Lumber | No |
| Height | 7-9/16″ |
| Joist size | 2″ X 10″ Rough |
| Thickness | 18 Gauge |
| Width | 2″ |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
