Simpson Strong-Tie THDC25400CS6SS Description

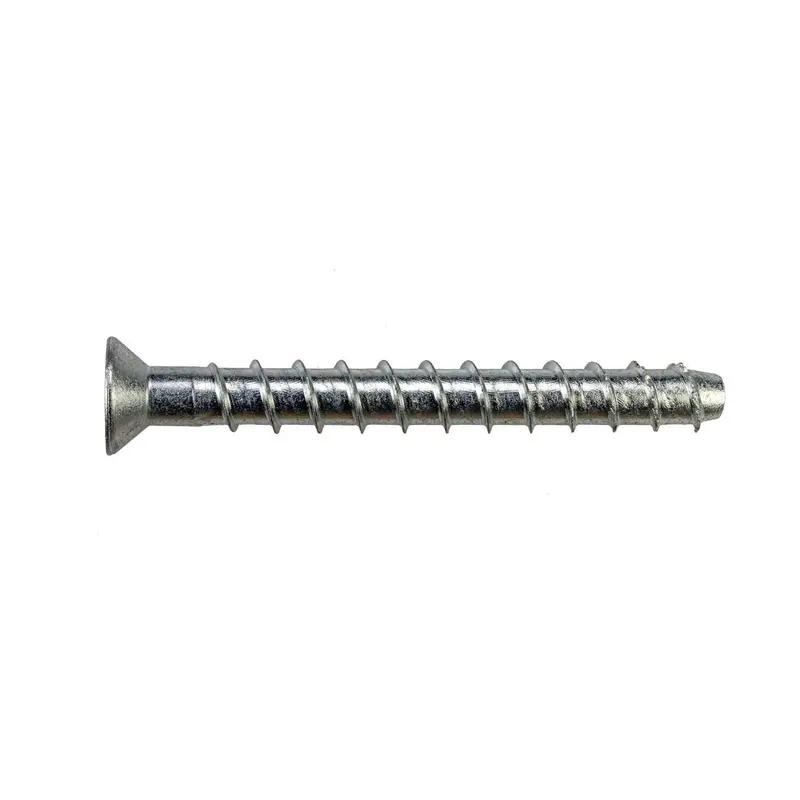

Simpson Titen HD anchors are high-performance screw anchors designed for easy installation. The countersunk head allows for a flush installation, and the stainless finish offers high corrosion resistance.
Simpson Strong-Tie THDC25400CS6SS Includes
- (25) 1/4 in. x 4 in. Titen HD Countersunk Head Heavy-Duty Screw Anchor
- (1) Driver bit
Simpson Strong-Tie THDC25400CS6SS Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions
- Standard fractional sizes, hole size same as anchor size
- No special drill bit required
- Removable, ideal for temporary anchoring
- 6-lobe drive reduces driver-bit cam-outs
- Countersunk head allows for flush installation
- Available in 1/4 in. and 3/8 in. diameters
Simpson Strong-Tie THDC25400CS6SS Applications
- Temporary anchoring for fixtures that may need to be moved
- Anchoring in corrosive environments
- Applications requiring flush installation
Simpson Strong-Tie THDC25400CS6SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the countersunk head contacts the fixture.
Simpson Strong-Tie THDC25400CS6SS Specifications
| Diameter | 1/4 in. |
| Length | 4 in. |
| Material | 316 Stainless Steel |
| Drill Bit Size | 1/4 in. |
| Drive Type | T30 6-Lobe |
| Fixture Hole Size | 3/8 in. – 7/16 in. |
| Head Type | Flat Head |
| Quantity | 25 |
NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
