Description
Simpson THD50300HC25 Description

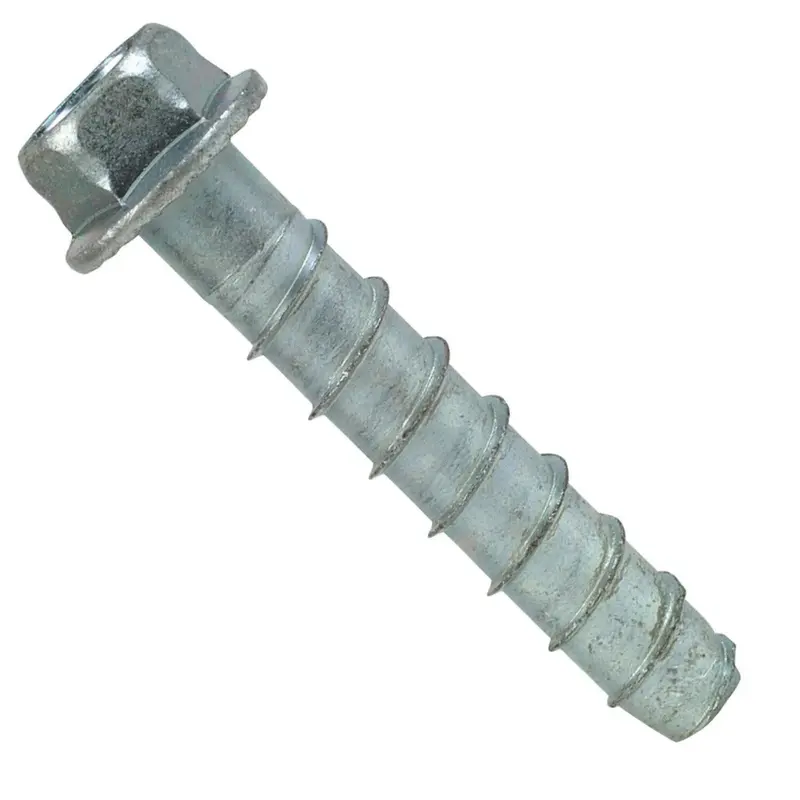

Titen HD Screw Anchors are high-strength, zinc-plated anchors designed for quick installation in cracked and uncracked concrete. Ideal for dry, interior, and non-corrosive environments.
Simpson THD50300HC25 Includes

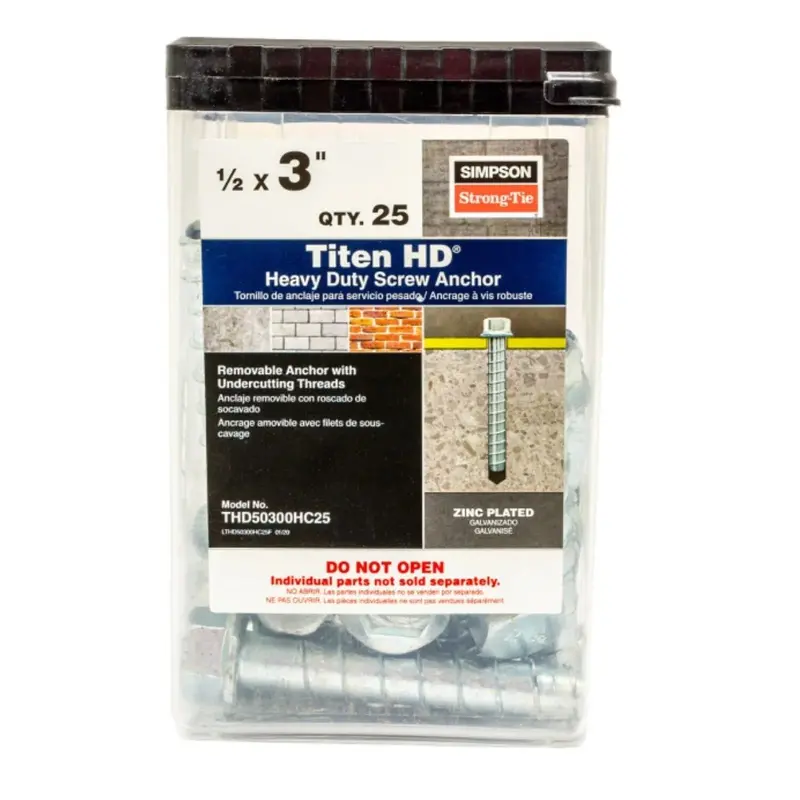

- (25) Titen HD Screw Anchor Zinc Plated
Simpson THD50300HC25 Features
- High-strength design for reliable performance
- Patented thread design with serrated cutting teeth for easy installation
- Zinc-plated for use in dry, interior, and non-corrosive environments
- Code listed by ICC-ES for cracked and uncracked concrete applications
Simpson THD50300HC25 Applications
- Concrete fastening in cracked and uncracked concrete
- Dry, interior environments
- Temporary outdoor applications
Simpson THD50300HC25 Installation Overview
- Drill a hole in the base material using a matching drill bit
- Clean the hole with compressed air
- Insert the anchor through the fixture and into the hole
- Tighten the anchor bolt until the hex-washer head contacts the fixture
Simpson THD50300HC25 Specifications
| Diameter | 1/2″ |
| Finish | Zinc |
| Length | 3″ |
| Material | Carbon Steel |
| Drill bit size | 1/2″ |
| Drive type | 3/4″ Hex |
| Fixture hole size | 5/8″-11/16″ |
| Head type | Hex Head |
| Quantity | 25 |
NOTE: Ensure the anchors are installed according to the manufacturer’s guidelines to achieve optimal performance
