Description
Simpson Strong-Tie THD37634RC Description

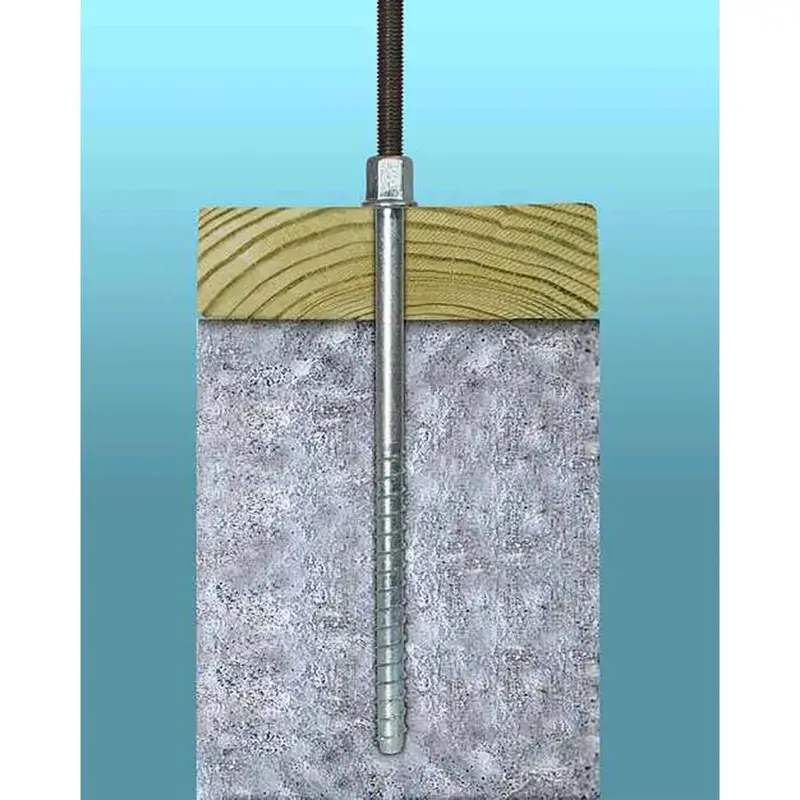

The Titen HD Rod Coupler is a high-performance anchor designed for threaded rod applications in concrete. It features a patented thread design for easy installation and a zinc-plated finish for durability.
Simpson Strong-Tie THD37634RC Includes
- (25) Titen HD Rod Coupler for 3/8 in. Rod
Simpson Strong-Tie THD37634RC Features
- Code listed in ESR-2713 for wind and seismic loading
- Serrated cutting teeth and thread design for quick installation
- Specialized heat-treating process for durability
- No special tools required for installation
- Compatible with 3/8″ and 1/2″ threaded rods
- Suitable for dry interior environments
Simpson Strong-Tie THD37634RC Applications
- Concrete block anchoring for grouted applications
- Threaded rod tie-down systems in single or multi-story structures
Simpson Strong-Tie THD37634RC Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2″ deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air.
- Tighten the anchor with the appropriate size socket until the head sits flush against the base material.
Simpson Strong-Tie THD37634RC Specifications
| Material | Carbon steel |
| Finish | Zinc plated |
| Rod Diameter | 3/8 in. |
| Drill Bit Diameter | 3/8 in. |
| Wrench Size | 9/16 in. |
| Length | 6-3/4 in. |
| Quantity | 25 |
NOTE: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with base material and will reduce the anchor’s load capacity. Use a Titen HD rod coupler one time only. Installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
