Simpson Strong-Tie Thd37212Cs6Ss 3/8″ X 2-1/2″ Countersunk Titen Hd Screw – Type 316 Stainless, 25-Pack

Description

Simpson Strong-Tie THD37212CS6SS Description

Simpson Titen HD anchors are high-performance screw anchors designed for easy installation. The countersunk head allows for a flush installation, providing a cleaner look.

Simpson Strong-Tie THD37212CS6SS Includes

• (25) Titen HD 3/8 in. x 2-1/2 in. Type 316 SS Countersunk Head Heavy-Duty Screw Anchor
• (1) Driver bit

Simpson Strong-Tie THD37212CS6SS Features

• Tested in accordance with ACI 355.2, AC193, and AC106
• Qualified for static, wind, and seismic loading conditions
• Standard fractional sizes, hole size same as anchor size
• No special drill bit required
• Removable, ideal for temporary anchoring
• 6-lobe drive reduces driver-bit cam-outs
• Countersunk head allows for flush installation
• Available in 1/4″ and 3/8″ diameters

Simpson Strong-Tie THD37212CS6SS Applications

• Mechanical anchoring for concrete and masonry
• Temporary anchoring for fixtures
• Applications in corrosive environments

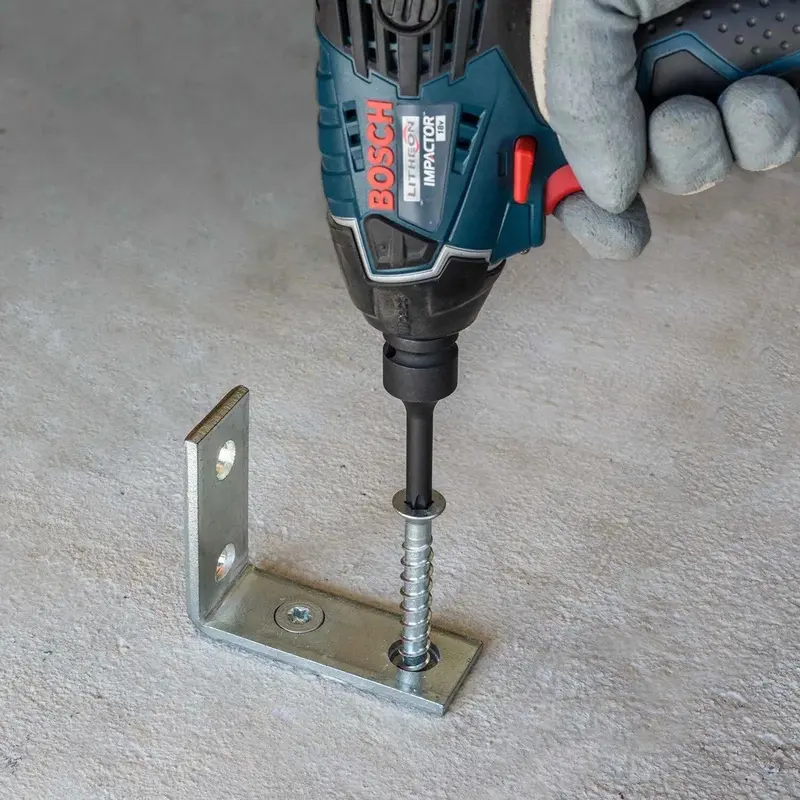

Simpson Strong-Tie THD37212CS6SS Installation Overview

1. Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
2. Insert the anchor through the fixture and into the hole.
3. Tighten the anchor until the countersunk head contacts the fixture.

Simpson Strong-Tie THD37212CS6SS Specifications

NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
