Simpson Strong-Tie STB2-754344SSR10 Description
Simpson Strong-Bolt 2 anchors are ICC-ES code compliant, suitable for cracked or uncracked concrete, and qualified for static and seismic loading.
Simpson Strong-Tie STB2-754344SSR10 Includes

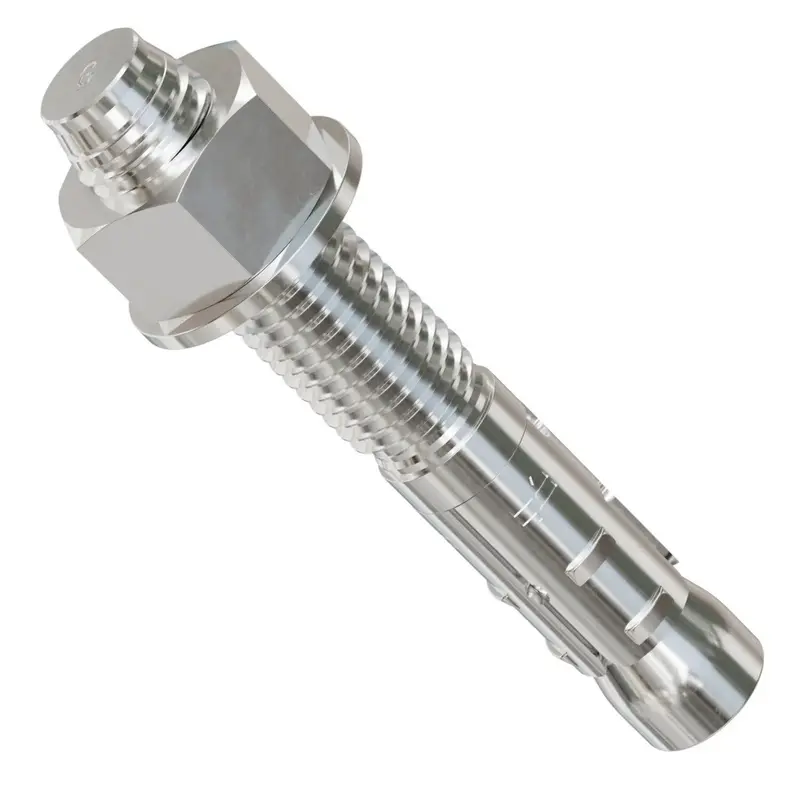

- (10) Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-754344SSR10 Features

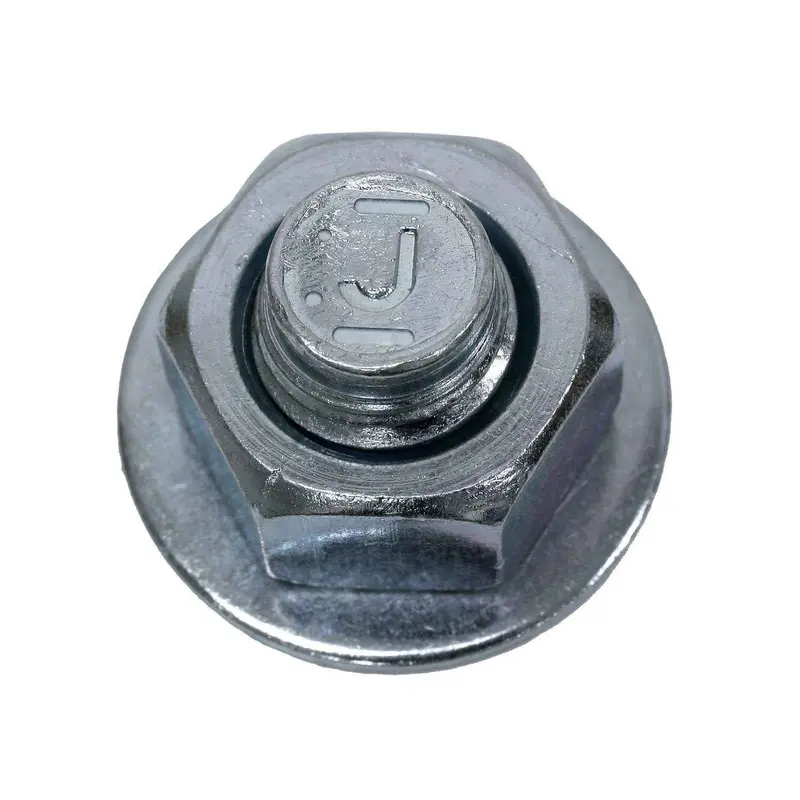

- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Qualified for minimum concrete thickness of 3 1/4″
- Fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-754344SSR10 Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-754344SSR10 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer, ensuring the nut is flush with the anchor top.
- Place the anchor in the fixture and drive it into the hole.
- Tighten to the required installation torque.
Simpson Strong-Tie STB2-754344SSR10 Specifications
| Material | Type 304 Stainless Steel |
| Length | 4-3/4″ |
| Drill Bit Size | 3/4″ |
| Fixture Hole Size | 7/8″ |
| Installation Torque | 150 ft. lbf. |
| Thread Length | 2-1/2″ |
NOTE: Models STB2-25134xSS, STB2-37214xSSR50, STB2-50234xSSR25, STB2-62312xSSR20, and STB2-75434xSSR10 do not meet minimum embedment in code report.
