Simpson Strong-Tie Stb2-624124Ss Type 304 Stainless Steel Wedge Anchor – 5/8″ X 4-1/2″, Dual-Anchoring, 20-Pack

Description

Simpson Strong-Tie STB2-624124SS Description

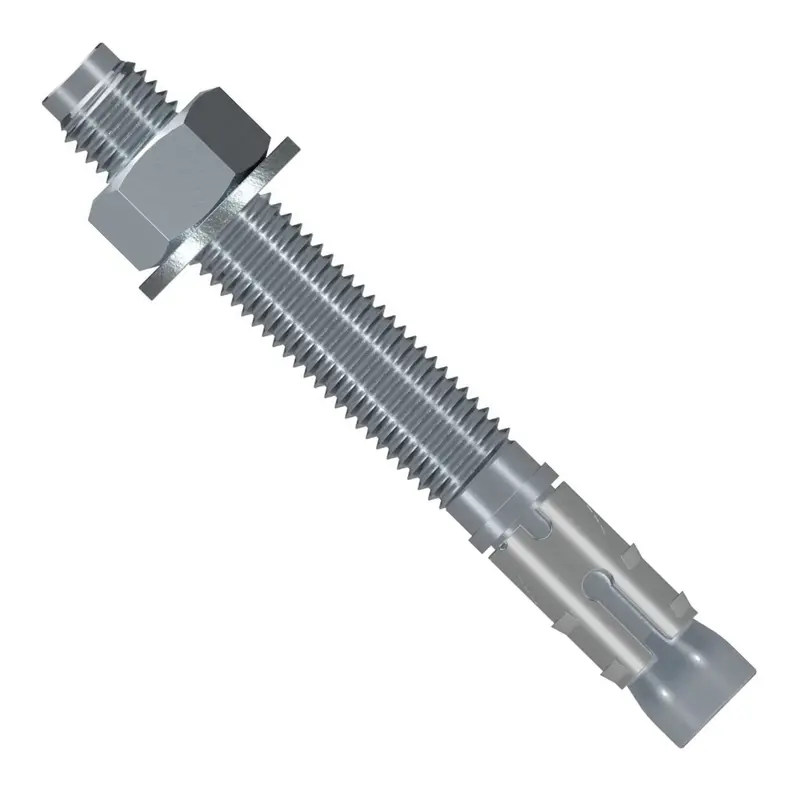

The Strong-Bolt 2 Wedge Anchor is a high-performance anchor designed for use in cracked and uncracked concrete. Made from 304 stainless steel, it is suitable for static and seismic loading conditions.

Simpson Strong-Tie STB2-624124SS Includes

• (20) 5/8 in. x 4-1/2 in. Strong-Bolt 2 Wedge Anchor

Simpson Strong-Tie STB2-624124SS Features

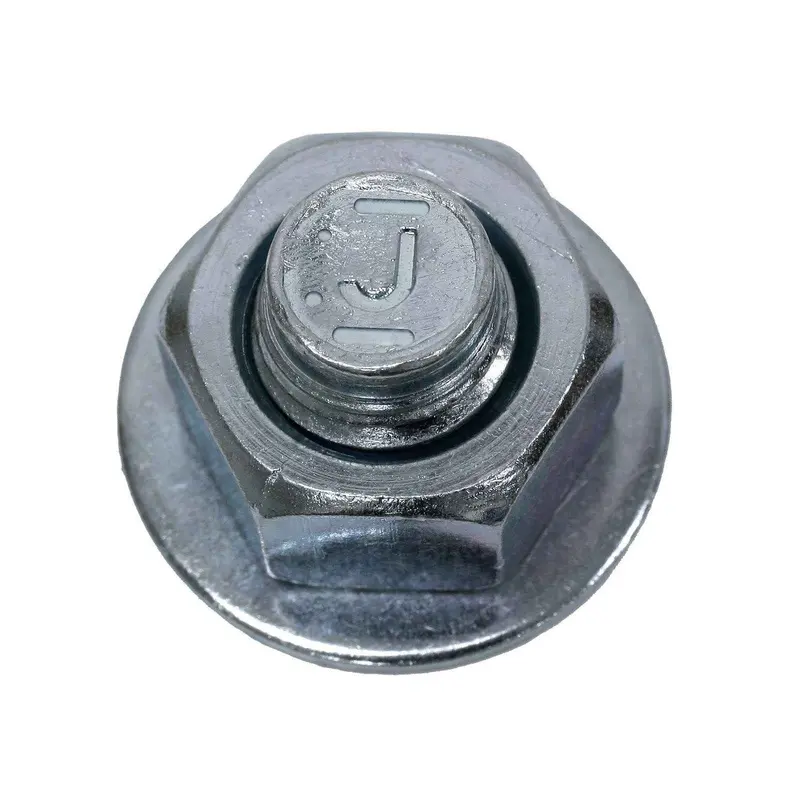

• Chamfered top designed to prevent mushrooming during installation
• Qualified for static and seismic loading conditions (seismic design categories A through F)
• Suitable for horizontal, vertical, and overhead applications
• Qualified for minimum concrete thickness of 3 1/4 in. and lightweight concrete-over-steel deck
• Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
• Tested per ACI355.2 and AC193

Simpson Strong-Tie STB2-624124SS Applications

• Concrete anchoring in cracked and uncracked concrete
• Seismic and static load applications
• Horizontal, vertical, and overhead installations

Simpson Strong-Tie STB2-624124SS Installation Overview

1. Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
2. Blow the hole clean using compressed air or ensure it is deep enough to accommodate dust.
3. Assemble the anchor with the nut and washer, ensuring the nut is flush with the anchor top.
4. Insert the anchor into the hole and tighten the nut to the required torque.

Simpson Strong-Tie STB2-624124SS Specifications

NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
