Simpson Strong-Tie Sstb20Lhdg Hot-Dip Galvanized Anchor Bolt – 5/8″ × 24-5/8″

Description

Simpson Strong-Tie SSTB20LHDG Description

The Simpson Strong-Tie SSTB Anchor Bolt is designed for maximum performance in concrete applications, featuring a hot-dip galvanized finish for enhanced corrosion resistance.

Simpson Strong-Tie SSTB20LHDG Includes

• (1) SSTB Anchor Bolt

Simpson Strong-Tie SSTB20LHDG Features

• Identification on the bolt head showing embedment angle and model
• Offset angle reduces side bursting, and provides more concrete cover
• Rolled thread for higher tensile capacity
• Stamped embedment line aids installation
• Available in HDG for additional corrosion resistance

Simpson Strong-Tie SSTB20LHDG Applications

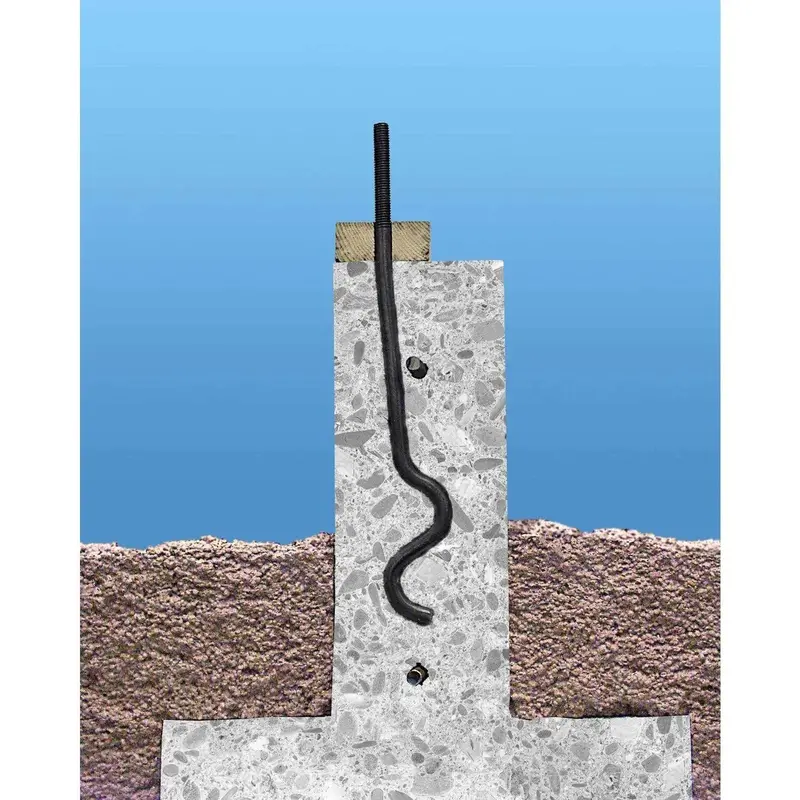

• Concrete anchoring for structural holdowns
• Suitable for monolithic and two-pour concrete applications
• Ideal for use in grout-filled concrete masonry units (GFCMU)

Simpson Strong-Tie SSTB20LHDG Installation Overview

1. Install SSTB before the concrete pour using AnchorMate anchor bolt holders.
2. Ensure minimum concrete compressive strength of 2,500 psi.
3. Follow plan view details for proper placement.
4. Use overtapped nuts or couplers for HDG anchors as per ASTM A563.
5. Rebar is not required to be tied to the SSTB.

Simpson Strong-Tie SSTB20LHDG Specifications

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
