Description
Simpson Strong-Tie LCC4.5-3.5 Description

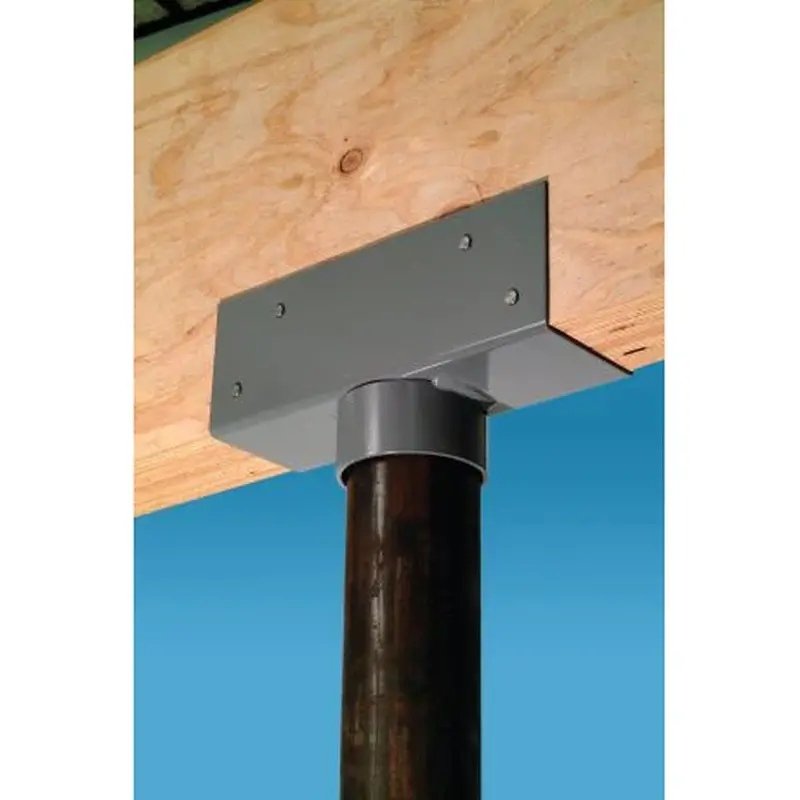

The Simpson LCC4.5-3.5 Lally Column Cap enhances the strength and stability of construction projects, providing a high-capacity column-to-beam connection.
Simpson Strong-Tie LCC4.5-3.5 Includes
- (1) Lally Column Cap
Simpson Strong-Tie LCC4.5-3.5 Features
- Provides strong column-to-beam connection
- Designed for 3.5-inch diameter lally columns
- Made from durable steel with gray paint finish
- Extended surface area for additional load distribution
- Diamond holes for temporary fastening during installation
Simpson Strong-Tie LCC4.5-3.5 Applications
- Column-to-beam connections in construction
- Use with 3.5-inch diameter lally columns
- Suitable for Triple 2×10/12 girders
Simpson Strong-Tie LCC4.5-3.5 Installation Overview
- Fit the lally column cap over the lally column
- Attach the cap to the girder using specified fasteners
Simpson Strong-Tie LCC4.5-3.5 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Gauge | 12 |
| Column Diameter | 3.5 inches |
| Girder Size | Triple 2×10/12 |
| Fasteners Required | (8) 0.162″ x 3-1/2″ Nails |
