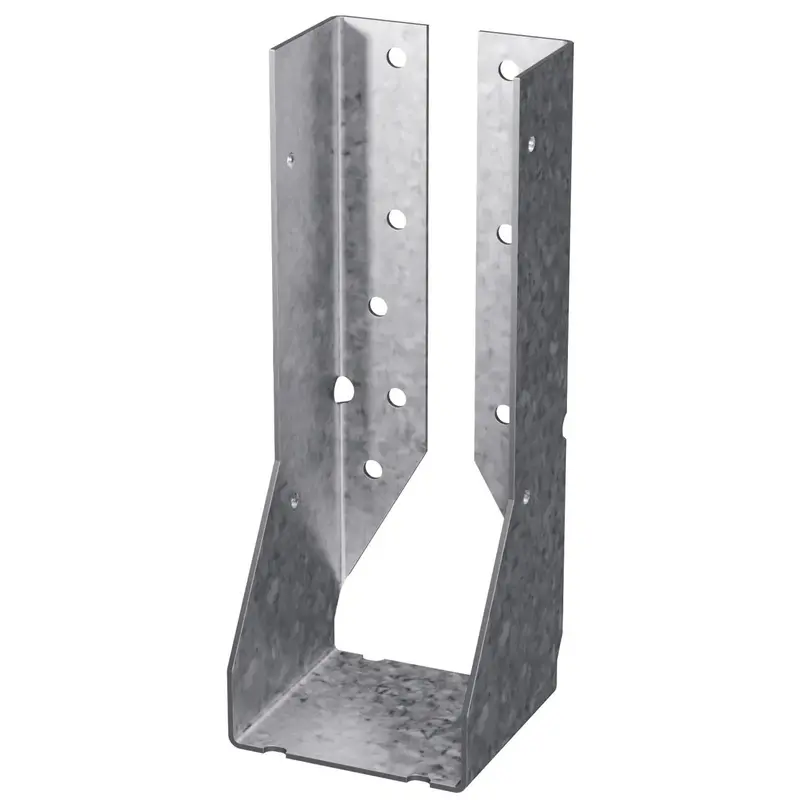

Simpson Strong-Tie HUC48Z Description
The Simpson Strong-Tie HUC48Z is a concealed flange joist hanger designed for 4×8 lumber. It features a ZMAX galvanized finish for enhanced corrosion resistance and is suitable for heavy-duty applications.
Simpson Strong-Tie HUC48Z Includes
- (1) HUC48Z Concealed Flange Joist Hanger
Simpson Strong-Tie HUC48Z Features
- Concealed flange design for a clean look
- ZMAX galvanized finish for corrosion resistance
- Compatible with 4×8 lumber
- Heavy-duty construction for structural applications
- Tested and code compliant
Simpson Strong-Tie HUC48Z Applications
- Structural framing for schools and other buildings
- Heavy-duty wood construction requiring concealed flange hangers
- Applications needing enhanced corrosion resistance
Simpson Strong-Tie HUC48Z Installation Overview
- Use all specified fasteners as per guidelines
- Install by filling round and triangle holes for maximum load
- Compatible with joists sloped up to 1/4:12
- Can be welded to steel members following technical guidelines
Simpson Strong-Tie HUC48Z Specifications
| Material | Carbon Steel |
| Finish | ZMAX Galvanized |
| Thickness | 14 Gauge |
| Width | 3-9/16″ |
| Height | 6-1/8″ |
| Joist Size | 4″ X 8″ |
| Fasteners Required | Face – (14) 0.162″ x 3-1/2″ Nails, Joist – (6) 0.148″ x 3″ Nails |
| For Treated Lumber | Yes |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
