Simpson Strong-Tie Epc6Z 5-1/2″ 16-Gauge End Post Cap – Zmax Corrosion-Resistant Finish

Description

Simpson EPC6Z Description

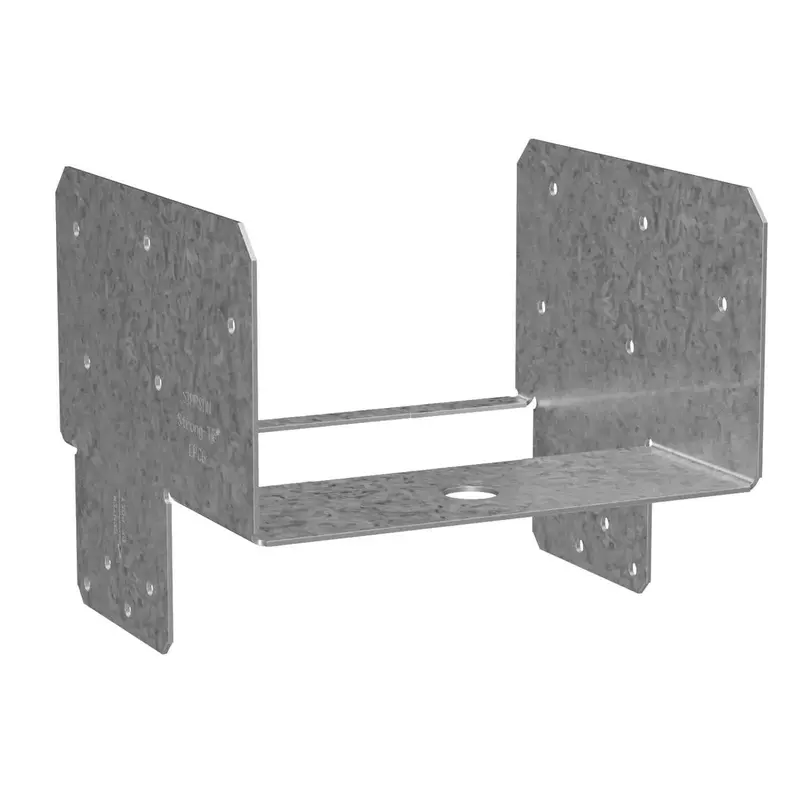

The Simpson EPC6Z 6X End Post Cap features a ZMAX finish and heavy-gauge steel construction, providing a reliable post-to-beam end connection for enhanced stability.

Simpson EPC6Z Includes

• (1) 6X End Post Cap

Simpson EPC6Z Features

• Provides an easy post-to-beam end connection
• Intended for use with 6x posts and beams
• Made from durable heavy-gauge steel
• Finished with ZMAX coating for corrosion resistance
• Certified welds for increased strength and loading
• Enhanced uplift loads for earthquake or wind loading

Simpson EPC6Z Applications

• Post-to-beam connections in construction projects
• Deck framing for enhanced structural stability
• Use with nominal and rough cut lumber

Simpson EPC6Z Installation Overview

1. Align the post cap with the beam and post
2. Secure using specified fasteners: Beam – (10) 0.148 x 3″ Nails OR (10) SD9112 Screws; Post – (8) 0.148 x 3″ Nails OR (8) SD9112 Screws
3. Ensure all fasteners are properly installed for optimal performance

Simpson EPC6Z Specifications

NOTE: Ensure all fasteners are properly installed to achieve optimal performance and load values.
