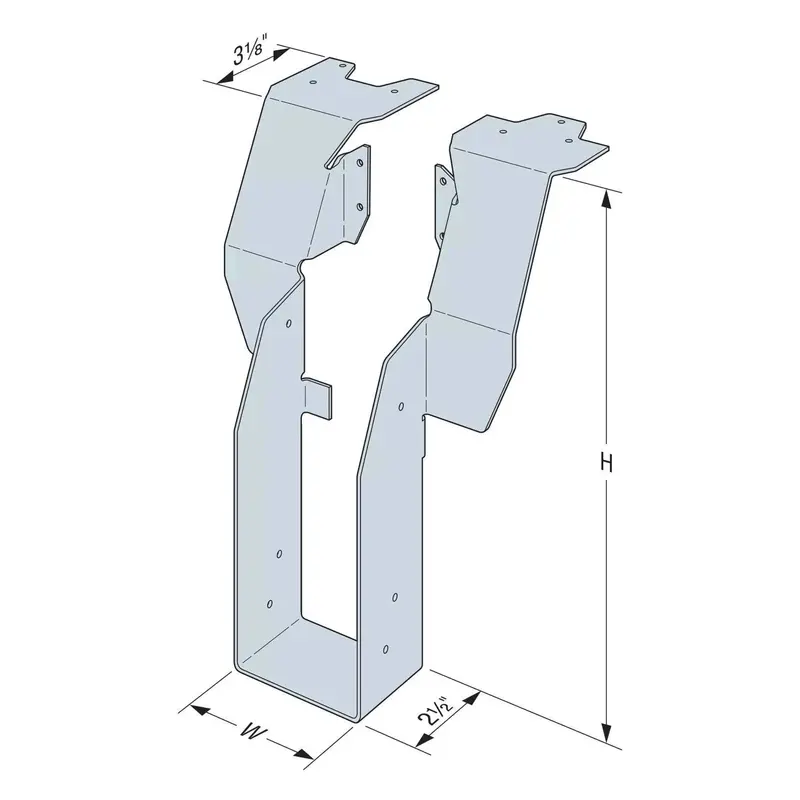

Simpson Strong-Tie Dgt2.56/11.88 Top-Flange Fire-Rated Wall Hanger For Engineered Lumber (2-1/2″ X 11-7/8″)

Description

Simpson DGT2.56/11.88 Description

The Simpson DGT2.56/11.88 Top-Flange Fire Wall Hanger is designed for robust fire-rated connections in multifamily and multilevel Type III residential constructions.

Simpson DGT2.56/11.88 Includes

• (1) Top-Flange Fire Wall Hanger for Engineered Wood

Simpson DGT2.56/11.88 Features

• Two-hour fire rating for 2×4 or thicker walls
• Innovative top-flange design for back-to-back installation on 2×6 walls
• Space for two layers of 5/8″ drywall after framing
• Tested and code listed for power-driven or hand-installed nails
• Made from 12-gauge galvanized steel

Simpson DGT2.56/11.88 Applications

• Multifamily Residential Buildings: Provides fire-rated connections essential for apartment complexes and condominiums.
• Commercial Structures: Ensures compliance with fire safety standards in offices and retail spaces.
• Type III Construction: Ideal for multilevel residential buildings requiring fire-rated wall assemblies.

Simpson DGT2.56/11.88 Installation Overview

1. Use all specified fasteners as per the manufacturer’s guidelines.
2. Install the DGT hanger similarly to standard top-flange hangers.
3. Ensure stud wall-plate splices occur at stud locations.
4. For I-joist applications, web stiffeners are required.
5. When attaching to a steel header, weld the DGT hanger using four 1/8″ x 1-1/2″ fillet welds and secure with six joist nails to achieve a download capacity of 1,700 lbs.

Simpson DGT2.56/11.88 Specifications

NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values
