Description

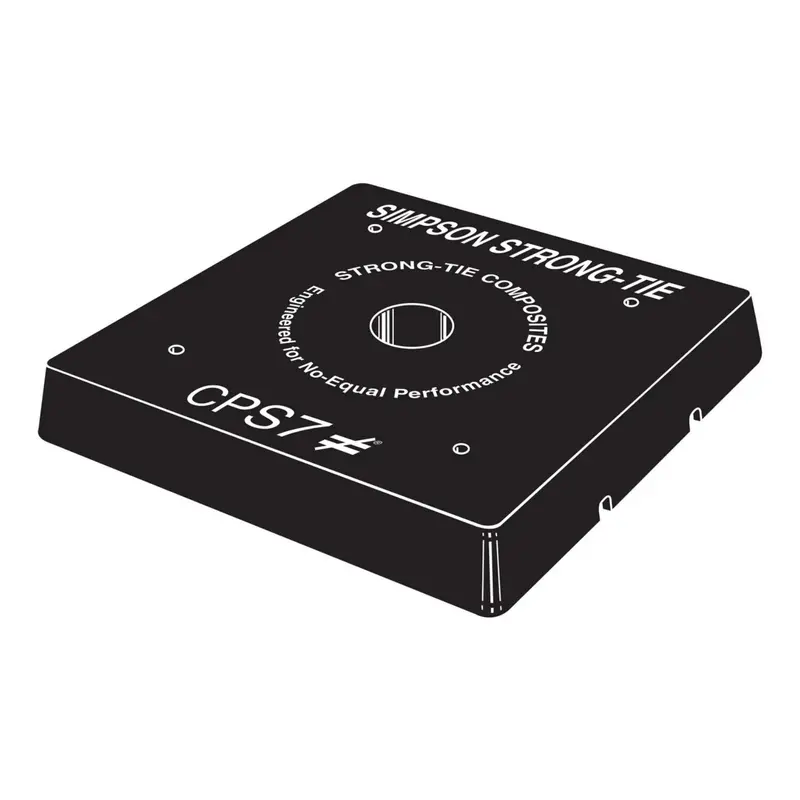

Simpson Strong-Tie CPS7 Description
The Simpson Strong-Tie CPS7 is a composite-plastic standoff designed for increased concrete surface area and maximum durability.
Simpson Strong-Tie CPS7 Includes
- (1) Composite Plastic Standoff
Simpson Strong-Tie CPS7 Features
- Made from durable composite plastic
- Designed to increase concrete surface area
- Rust-resistant material
- Compatible with 8×8 posts
Simpson Strong-Tie CPS7 Applications
- Post installations for 8×8 posts
- Concrete surface applications requiring standoffs
Simpson Strong-Tie CPS7 Installation Overview
- Drill a 3/4″ diameter hole, 10″ into the center of the post.
- Clean out dust and fill the hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
- Insert all-thread rod and allow epoxy to set and cure.
- Secure standoff to post using four 10d nails.
- Drill a 3/4″ diameter hole per anchor design in concrete.
- Clean out dust and fill the hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
- Insert post subassembly into the hole and allow epoxy to set and cure.
Simpson Strong-Tie CPS7 Specifications
| Length | 7-1/4″ |
| Height | 1-1/4″ |
| Post size | 8X8 |
| Fasteners required | (4) 0.148 x 3″ Nails, (1) 5/8″ Concrete Anchor |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
