Simpson Strong-Tie Cps6 Composite Plastic Standoff Base — Non-Corrosive 6×6 Post Spacer With Integrated Ventilation

Description

Simpson CPS6 Description

The Simpson CPS6 Composite Plastic Standoff is designed for increased concrete surface area and maximum durability, featuring a rust-free molded composite plastic construction.

Simpson CPS6 Includes

• (1) Composite Plastic Standoff for 6×6

Simpson CPS6 Features

• Rust-free molded composite plastic construction
• Designed for increased concrete surface area
• Maximum durability for long-lasting performance

Simpson CPS6 Applications

• Securing 6×6 posts to concrete surfaces
• Providing structural support for posts in construction projects

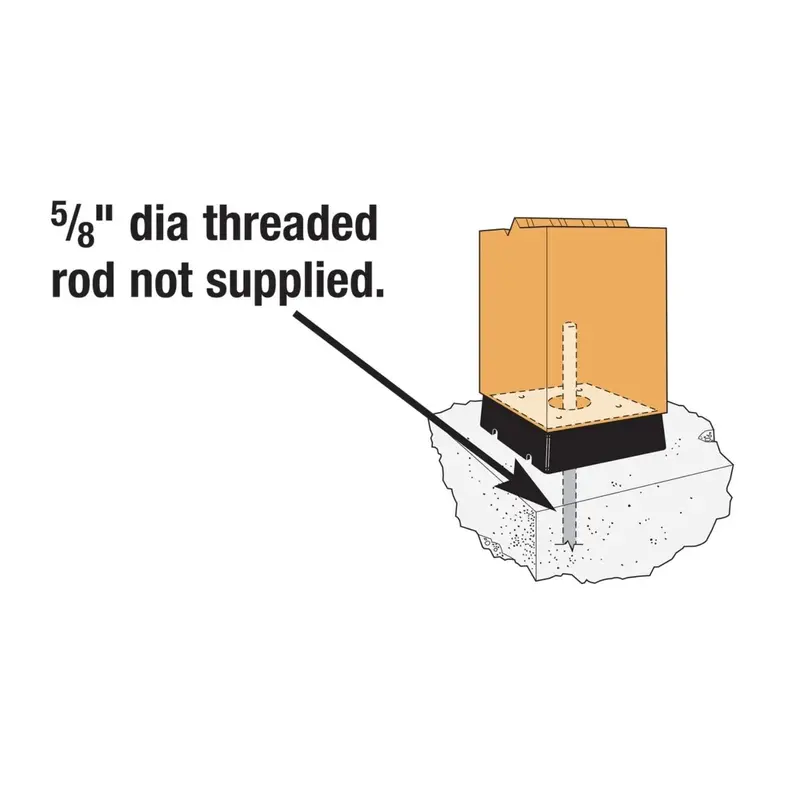

Simpson CPS6 Installation Overview

1. Drill a 3/4″ diameter hole, 10″ into the center of the post.
2. Clean out dust and fill hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
3. Insert all-thread rod and allow epoxy to set and cure.
4. Secure standoff to post using four 10d nails.
5. Drill a 3/4″ diameter hole per anchor design in concrete.
6. Clean out dust and fill hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
7. Insert post subassembly into hole and allow epoxy to set and cure.

Simpson CPS6 Specifications

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
