Description

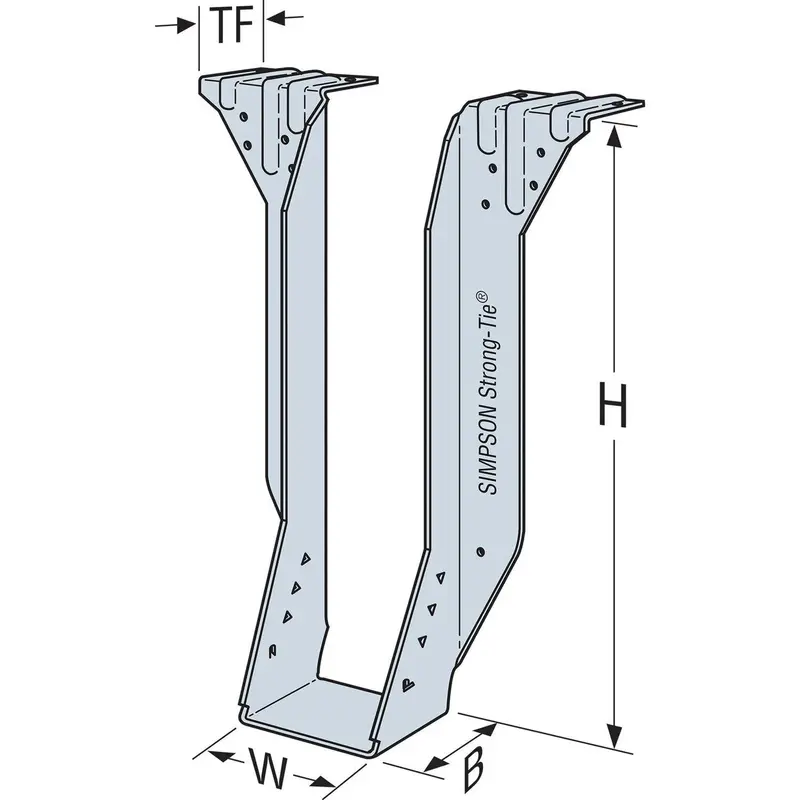

Simpson Strong-Tie BA412 Description
The Simpson BA412 Top Flange Joist Hanger provides exceptional load-bearing capacity for beam-to-beam and girder-to-girder connections, ensuring superior stability and structural integrity in demanding applications.
Simpson Strong-Tie BA412 Includes
- (1) 4×12 Top Flange Joist Hanger
Simpson Strong-Tie BA412 Features
- Heavy-duty load capacity for beam-to-beam and girder connections
- Top-flange installation for strong, stable connections
- Wide-seat design for even load distribution
- Compatible with solid sawn and engineered wood
- Durable G90 galvanized steel construction for corrosion resistance
Simpson Strong-Tie BA412 Applications
- Beam-to-beam connections for secure attachment
- Girder-to-girder connections for superior load transfer
- Floor and roof framing in residential, commercial, and industrial buildings
- Deck construction for supporting large beams
- Engineered wood framing compatible with LVL, PSL, and glulam beams
Simpson Strong-Tie BA412 Installation Overview
- Secure the hanger to the support beam using appropriate nails or screws
- Ensure the supported beam is properly seated within the hanger
- Install using top-flange mounting for direct and stable connection
- Follow local building codes and manufacturer guidelines for fastener selection and spacing
Simpson Strong-Tie BA412 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Header – (16) 0.162 x 3-1/2″ Nails, Joist – Min: (2) 0.148 x 1-1/2″ Nails – Max: (8) 0.148 x 1-1/2″ Nails |
| For Treated Lumber | No |
| Height | 11″ |
| Joist size | 4″ X 12″ |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 3-9/16″ |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
