Simpson Strong-Tie Abl4-1 Anchor Bolt Locator Tool: Includes 1/2″ Hex Nut For Precise Placement

Description

Simpson Strong-Tie ABL4-1 Description

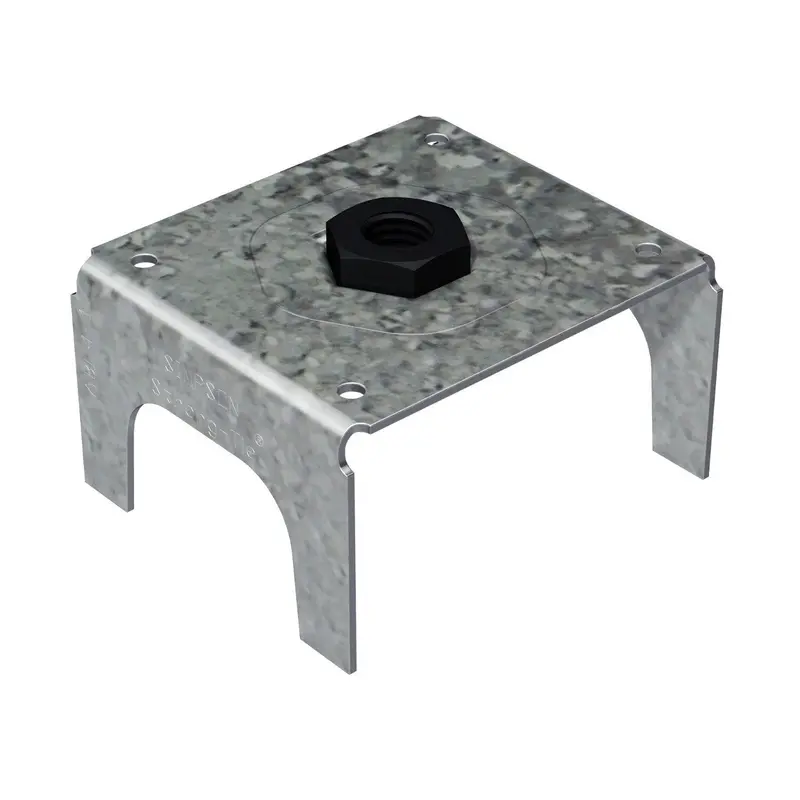

The Simpson Strong-Tie ABL4-1 Anchor Bolt Locator ensures precise and secure placement of anchor bolts on concrete-deck forms before concrete is poured. It features a preformed steel chair with an attached heavy hex nut, eliminating the need for an additional nut on the bottom of the anchor bolt.

Simpson Strong-Tie ABL4-1 Includes

• (1) Anchor Bolt Locator with 1/2″ Nut

Simpson Strong-Tie ABL4-1 Features

• Accurate placement of anchor bolts on concrete-deck forms
• Preformed steel chair for optimal concrete flow
• Heavy hex nut attached to the chair for convenience
• Meets code requirements for 1″ concrete coverage

Simpson Strong-Tie ABL4-1 Applications

• Concrete-deck formwork requiring anchor bolt placement
• Construction projects needing secure anchor bolt positioning

Simpson Strong-Tie ABL4-1 Installation Overview

1. Position the anchor bolt locator on the concrete-deck form
2. Ensure the attached nut is properly aligned with the anchor bolt
3. Pour concrete around the locator, ensuring optimal flow

Simpson Strong-Tie ABL4-1 Specifications
