Simpson Sstb24Hdg Hot-Dip Galvanized Anchor Bolt: 5/8″ X 25-5/8″

Description

Simpson SSTB24HDG Description

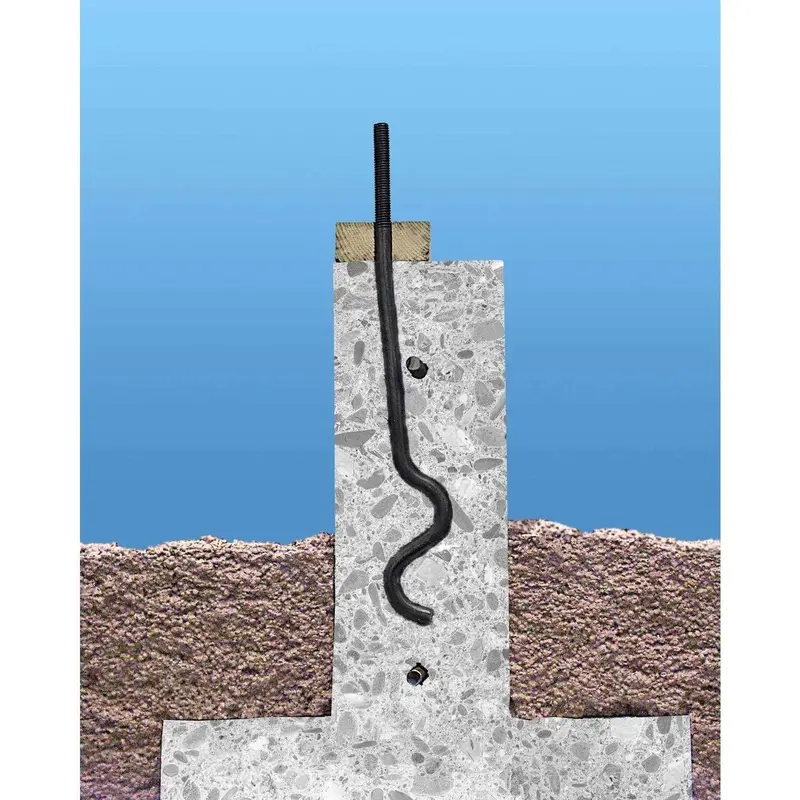

The SSTB24HDG Anchor Bolt is designed for concrete applications, offering high tensile capacity and corrosion resistance.

Simpson SSTB24HDG Includes

• (1) Hot-Dip Galvanized Anchor Bolt

Simpson SSTB24HDG Features

• Identification on the bolt head showing embedment angle and model
• Offset angle reduces side bursting and provides more concrete cover
• Rolled thread for higher tensile capacity
• Stamped embedment line aids installation
• Available in HDG for additional corrosion resistance

Simpson SSTB24HDG Applications

• Concrete foundations requiring secure anchoring
• Structural support in monolithic and two-pour concrete applications
• Use in grout-filled concrete masonry units (GFCMU)

Simpson SSTB24HDG Installation Overview

1. Verify dimensions and alignment of the anchor bolt and concrete structure.
2. Install SSTB before the concrete pour using AnchorMate anchor bolt holders.
3. Ensure minimum concrete compressive strength of 2,500 psi.
4. Follow plan view details for proper placement.
5. Use overtapped nuts or couplers for HDG SSTB anchors as per ASTM A563.

Simpson SSTB24HDG Specifications

NOTE: Ensure proper installation using the specified nuts and washers to achieve published load values
