Simpson Hdue5-Sds3Hdg Predeflected Holdown: 11-5/16″, Includes Sds Screws – Hot-Dip Galvanized

Description

Simpson Strong-Tie HDUE5-SDS3HDG Description

The HDUE5-SDS3HDG is a predeflected holdown designed for wood framing applications, featuring a hot-dip galvanized finish for durability and corrosion resistance.

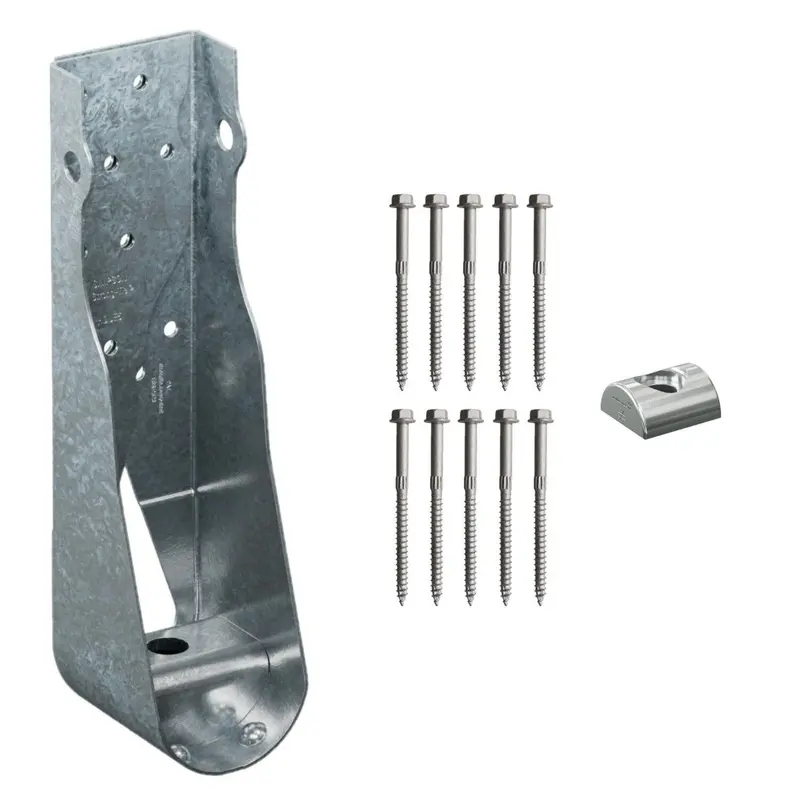

Simpson Strong-Tie HDUE5-SDS3HDG Includes

• (10) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
• (1) Crescent Washer

Simpson Strong-Tie HDUE5-SDS3HDG Features

• Predeflected seat reduces deflection under load
• Angled fastening in the four larger sizes engages the screws in tension for higher load capacity
• Overlapping back plate increases fastener strength and shear values
• Optimized screw patterns reduce splitting at the end of the post
• Installs with Strong-Drive SDS Heavy-Duty Connector screws
• Extruded seat adds a greater cross-sectional steel section for added strength
• Teardrop holes allow higher and more even distribution of load

Simpson Strong-Tie HDUE5-SDS3HDG Applications

• Framing — Wood

Simpson Strong-Tie HDUE5-SDS3HDG Installation Overview

1. Set the correct size cast-in-place anchor bolt
2. Place the HDUE holdown over the anchor bolt
3. Install all Strong-Drive SDS Heavy-Duty Connector Screws perpendicular into the wood member
4. Anchor bolt nut should be finger tight plus 1/3 to 1/2 turn with a hand wrench

Simpson Strong-Tie HDUE5-SDS3HDG Specifications
