Panel-Form Anchor Bolt Template – 18″ Length, Designed For High-Strength Wood Shearwalls

Description

Simpson Strong-Tie WSWH-RTPF18 Description

The WSWH-RTPF18 Panel-Form Anchor Bolt Template is designed for precise installation of anchor bolts in Strong-Wall high-strength wood shearwalls, offering versatility for various concrete foundation types.

Simpson Strong-Tie WSWH-RTPF18 Includes

• (1) WSWH-RTPF18 Panel-Form Anchor Bolt Template

Simpson Strong-Tie WSWH-RTPF18 Features

• Accurately locates anchor bolts for Strong-Wall high-strength wood shearwalls
• Standard templates are reversible and can be used for interior or exterior applications
• Variety of configuration options to accommodate common concrete foundation types

Simpson Strong-Tie WSWH-RTPF18 Applications

• RT — standard model used for exterior and interior (reversed) installations at the top of the form

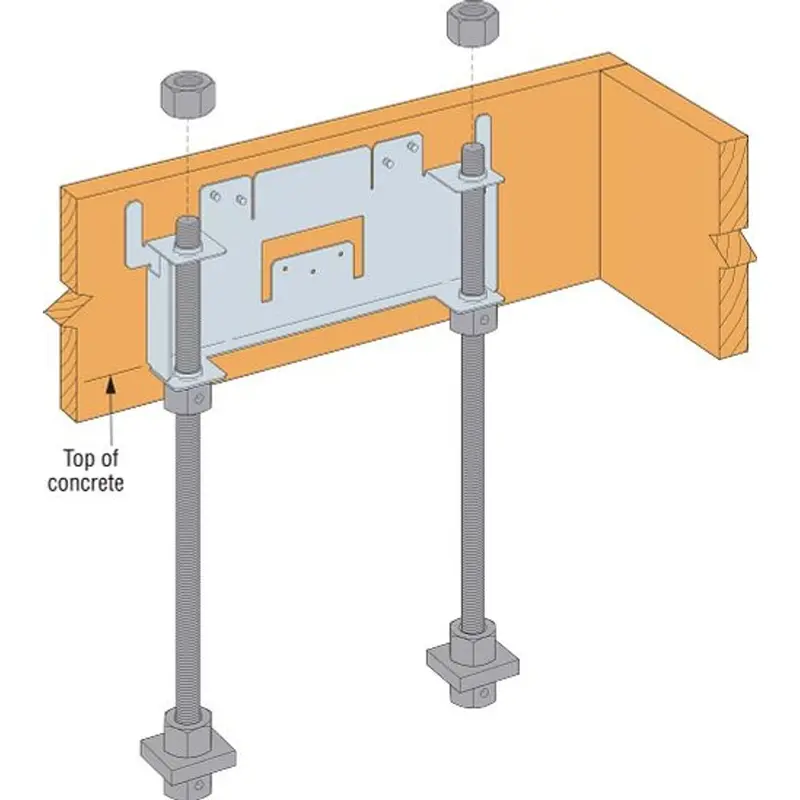

• RTPF — panel form model used for installations in panel forms, typically below the top of the form
• RTBL — brick ledge model used for brick ledge foundations
• RTEL — extended leg model used for installations where WSWH is flush with the inside face of a 2×6 sill plate
• RTELPF — extended leg model used for panel form installations where WSWH is flush with the inside face of a 2×6 sill plate when concrete is not poured to the top of the form; typically to set anchors into a stemwall or extend down to the footing

Simpson Strong-Tie WSWH-RTPF18 Installation Overview

1. Installation of Strong-Wall high-strength wood shearwall anchor bolt templates varies by application

Simpson Strong-Tie WSWH-RTPF18 Specifications

NOTE: Templates are recommended and are required in some jurisdictions. Foundation design by the designer.
