Description
Klein Tools ET180 Description

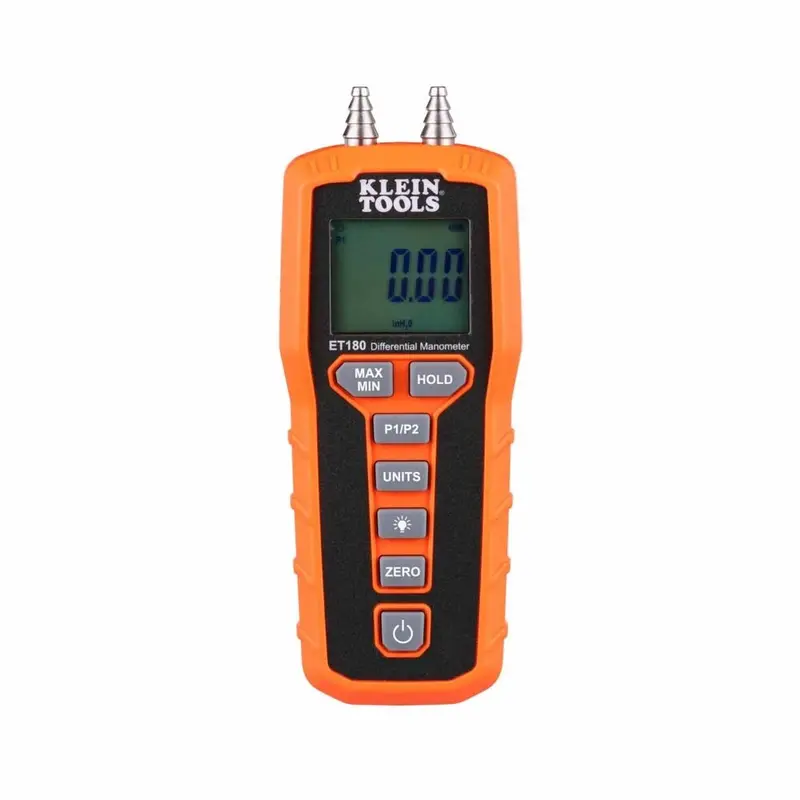

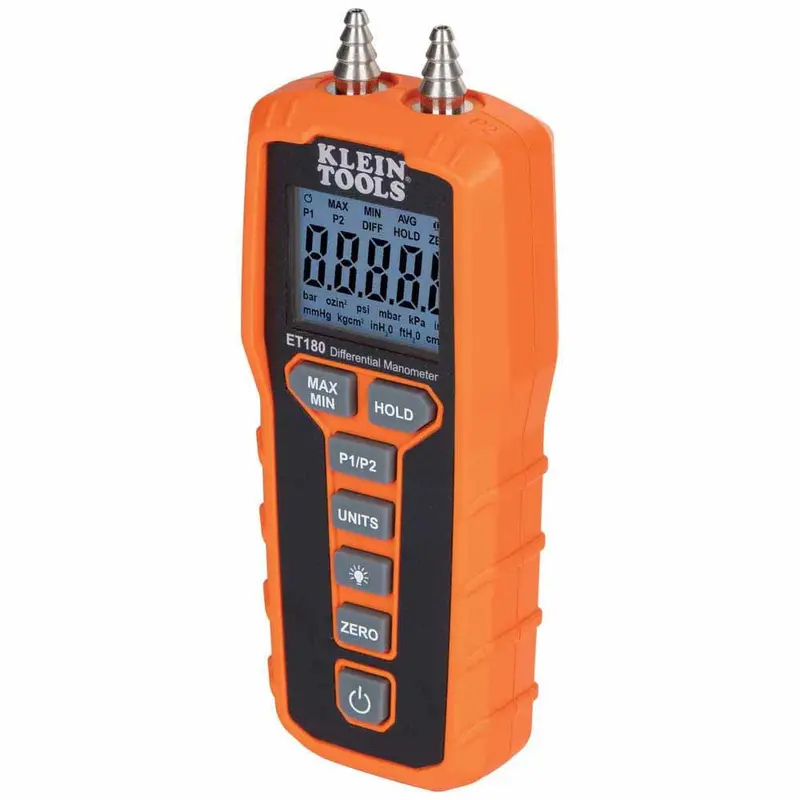

The Klein Tools ET180 Digital Differential Manometer measures air and gas pressure at ports P1 and P2 and calculates differential pressure. It features a large backlit LCD, Min/Max/Avg readings, and a magnetic mount for hands-free operation.
Klein Tools ET180 Includes
- (1) ET180 Digital Differential Manometer
- (1) 6.56 ft (2 m) x 1/8 in (3 mm) ID silicon tubing
- (3) AAA batteries
- (1) Storage pouch
- (1) Instruction manual
- (1) Case
Klein Tools ET180 Features
- Measures static and differential pressure for air and gas systems (P1, P2, and differential)
- Pressure range: +/- 60 inH2O
- Accuracy: +/- 1.5% full scale
- Large backlit LCD displays functions, units, and battery life
- Strong rear magnet for hands-free mounting
- Selectable measurement units: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH2O, cmH2O
- Min/Max/Avg measurement calculations
- Hold function locks the current reading on the display
- Auto zero before start
- Auto power off to help conserve battery life
- Tapered stainless steel ports fit hoses from 1/8 in to 5/16 in
Klein Tools ET180 Specifications
| Instrument Type | Digital differential manometer |
| Pressure Range | +/- 60 inH2O |
| Accuracy | +/- 1.5% full scale |
| Maximum Pressure Rating | 2.16 psi |
| Display | Backlit LCD |
| Battery Type | AAA |
| Material | ABS, Stainless Steel |
| Overall Height | 6 in |
| Overall Length | 2 in |
| Overall Width | 1 in |
| Slack Tube Length | 2.47 in (6.3 cm) |
| Included Tubing | 6.56 ft (2 m) x 1/8 in (3 mm) ID silicon tubing |
| Standards | Conforms to EN 61326-1:2013; EN61326-2-3:2013; CE and UKCA Certified |
| Country of Origin | China |
