Description

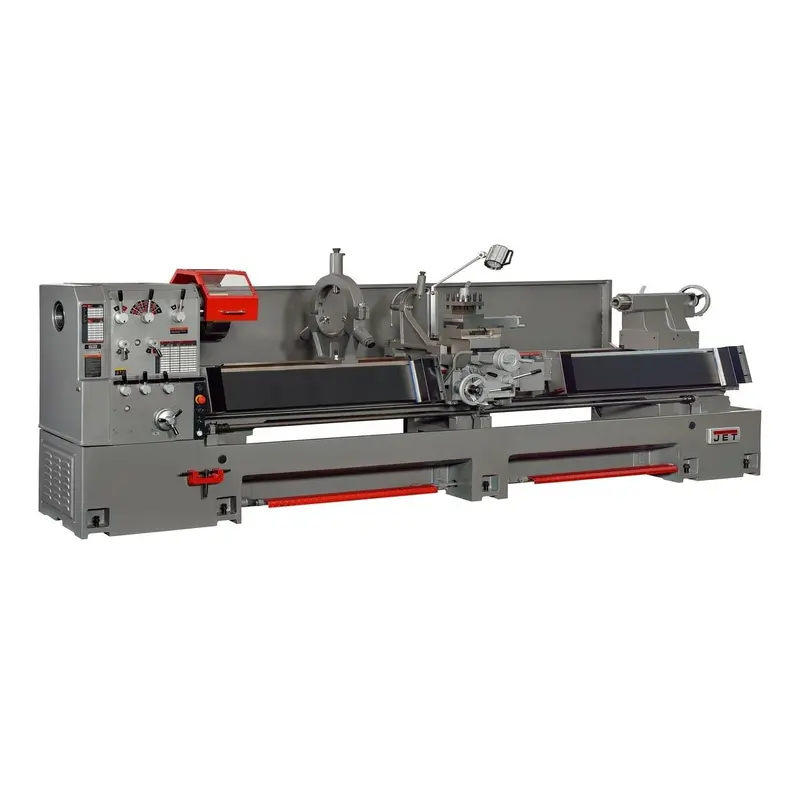

JET GH-26130ZH Description
Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/2″ Large Spindle Bore Lathes provide consistent, reliable, and precise operation. Features include a clutch operated headstock with all headstock gears hardened and ground, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you’ve come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
JET GH-26130ZH Features
- 3 Jaw scroll chuck with top reversing jaws
- Steady and follow rest with roller bearings
- Bed ways are induction hardened and ground for durability
- E-Stop on carriage for added safety
- Electronic chuck key holder
- Fitted top mats to hold tooling
- Full length splash guard
- CNC-style full length worklight
- Heavy-duty tailstock and quill
- Large easy to use foot brake
- Rapid power traverse to cross slide and carriage
- Standard leadscrew cover to protect leadscrew from debris and easy cleanup
- Includes change gears to allow user to cut DP and MP threads
- UL 987 Certified
JET GH-26130ZH Specifications
| Model Number | GH-26130ZH |
| Size | 26×130 |
| Style Type | Engine – Large Spindle Bore |
| Drive Type | Geared Head |
| Motor HP | 15 |
| Motor Phase | Three |
| Motor Voltage | 230/460V |
| Swing Over Bed | 26″ |
| Swing Through Gap | 35″ |
| Swing Over Cross Slide | 17-1/3″ |
| Distance Between Centers | 132″ |
| Center Height | 13″ |
| Width Of Bed | 15-3/4″ |
| Spindle Bore | 4-1/2″ |
| Spindle Mount | D1-11 |
| Spindle Taper | MT-7 |
| Spindle Taper With Sleeve | MT-5 |
| Number of Spindle Speeds | 12 |
| Range Of Speeds | 10-1000 RPM |
| Cross Slide Travel | 14-3/4″ |
| Compound Slide Travel | 8″ |
| Tailstock Spindle Travel | 6-1/2″ |
| Taper In Tailstock Spindle | MT-5 |
| Range Of Inch Threads (TPI) | 2-56 |
| Range Of Metric Threads | 0.5 – 14mm |
| Range Of Longitudinal Feeds | 0.002″ – 0.032″ |
| Range Of Cross Feeds | 0.001″ – 0.0094″ |
| Digital Readout (DRO) | Yes (Acu-Rite 203) |
| Assembled Dimensions (L x W x H) | 186.2″ x 40.6″ x 51.6″ |
| Net Weight (lbs) | 7937 |
| Country of Origin | Taiwan |
| Warranty | 2 Year |
