Description
JET GH-1340 Description

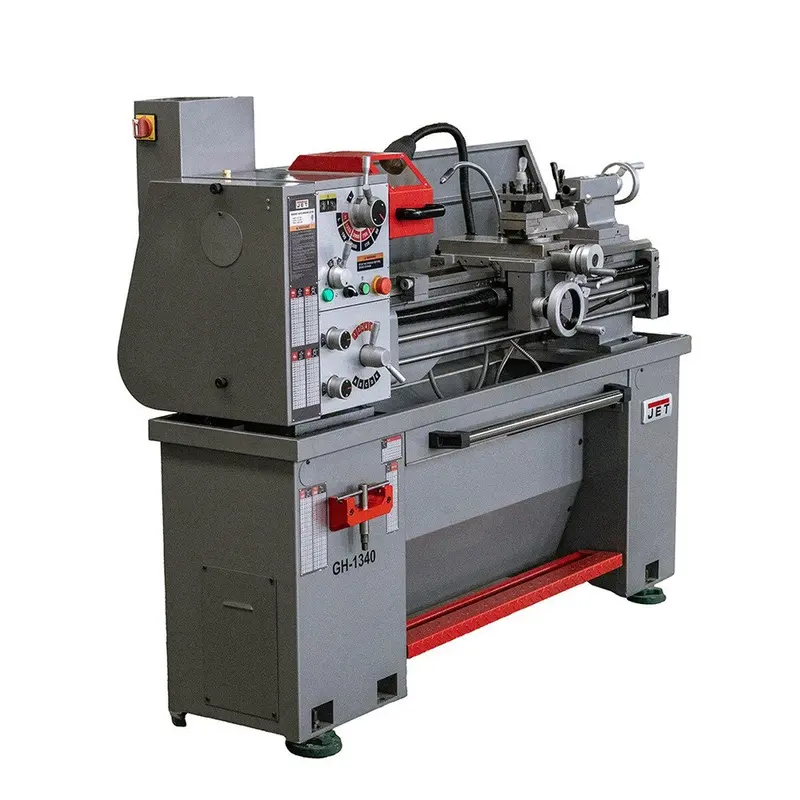

The new JET GH-1340 Geared Head Engine Lathe comes equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The segment-leading 2″ spindle bore, enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1340 also includes an emergency stop within easy reach of the operator as well as a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked. With standard UL 987 certification, this is the ideal everyday use lathe to outfit a workshop or repair center backed by the industry leading JET 2 Year Warranty.
JET GH-1340 Includes
- (1) GH-1340 Geared Head Engine Lathe
- (1) Newall NMS300 Digital Readout
- (1) Collet Closer
- (1) Taper Attachment Kit
- (1) 6″ 3-Jaw Chuck (Mounted)
- (1) 8″ 4-Jaw Chuck
JET GH-1340 Features
- 6″ 3-Jaw Chuck mounted on lathe and 8″ 4-Jaw Chuck included in the package
- Front Removable Chip Tray for easy cleanup
- Full Length Splash Guard with standard halogen work light
- JET Electronic Chuck Key Holder and standard chuck guard ensure operator safety while in use
- Integrated coolant system
- Fitted top mats to hold tooling
- Removable gap allows large diameter work
- Standard leadscrew cover to protect leadscrew from debris and easy cleanup
- UL 987 Certified
JET GH-1340 Specifications
| Model Number | GH-1340 |
| Size | 13×40 |
| Drive Type | Geared Head |
| Motor HP | 2 HP |
| Motor Phase | Single |
| Motor Voltage | 230V |
| Swing Over Bed | 13″ |
| Swing Through Gap | 16.9″ |
| Swing Over Cross Slide | 8.7″ |
| Distance Between Centers | 39″ |
| Spindle Bore | 2″ |
| Spindle Mount | D1-5 |
| Spindle Taper | MT-6 |
| Spindle Taper with Sleeve | MT-4 |
| Number of Spindle Speeds | 8 |
| Range of Speeds | 90-2000 RPM |
| Bed Height | 11.41″ |
| Width of Bed | 7.3″ |
| Center Height | 6.5″ |
| Length of Gap | 7.5″ |
| Cross Slide Travel | 6.7″ |
| Compound Slide Travel | 3.9″ |
| Maximum Tool Size | 5/8″ |
| Number of Inch Threads | 32 |
| Range of Inch Threads (TPI) | 4-56 |
| Number of Metric Threads | 32 |
| Range of Metric Threads | 0.4 – 7mm |
| Modular Pitch Threads Range | 0.2-3.5 |
| Number of Longitudinal and Cross Feed Rates | 40/40 |
| Digital Readout (DRO) | Yes (Newall NMS300) |
| 30 Point Inspection | Yes |
| Net Weight | 1146 lbs |
| Warranty | 2 Year |
| Country of Origin | China |
