Description
Fluke 6053114 Description

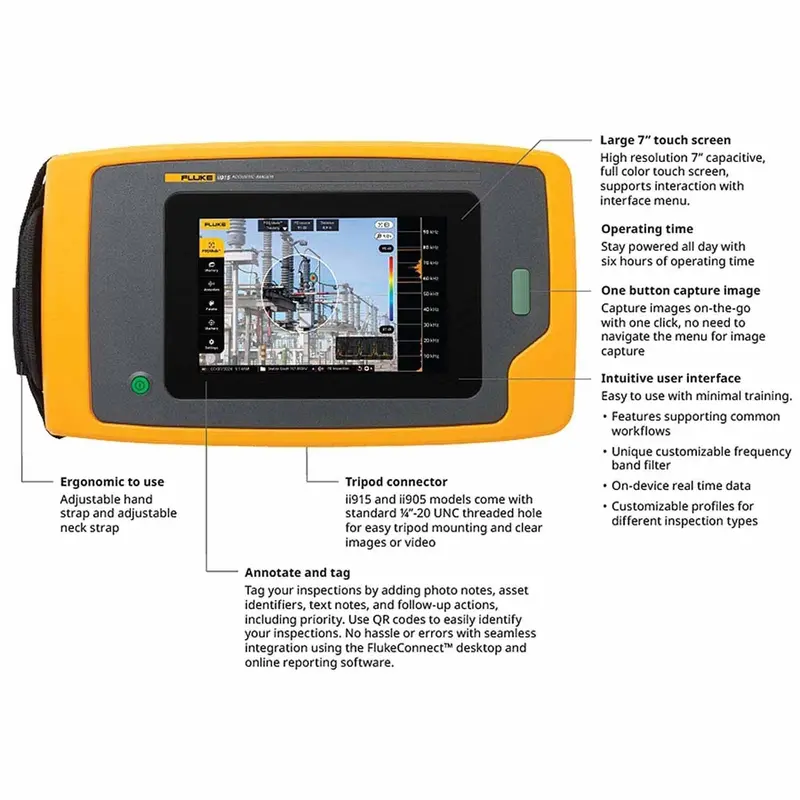

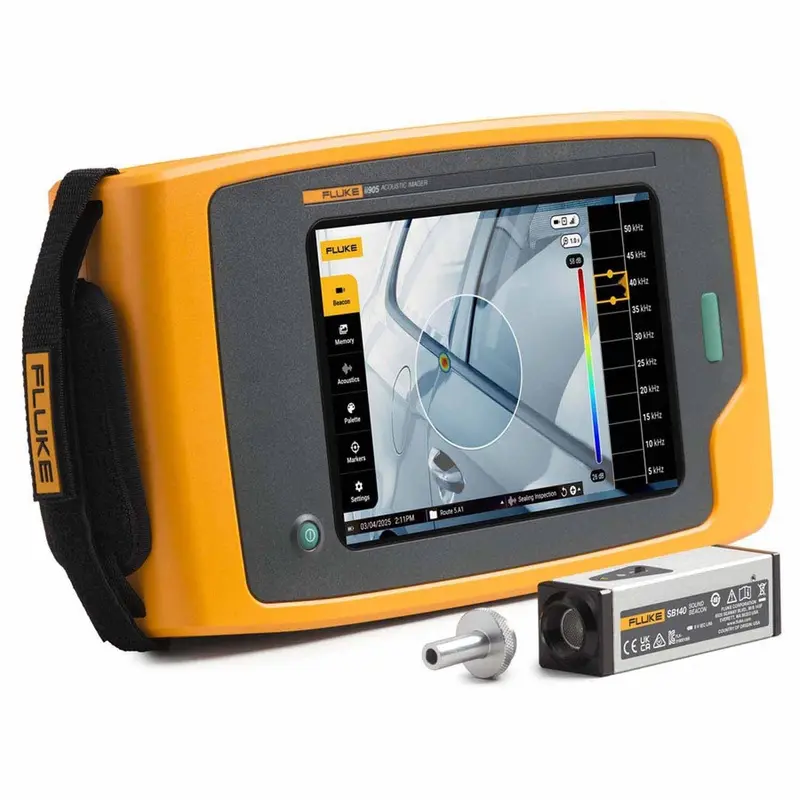

The Fluke FLK-II905/SB140 Acoustic Imager is a high-performance tool designed for detecting leaks with precision. It features a 7″ capacitive touchscreen, WiFi connectivity, and a robust aluminum housing.
Fluke 6053114 Includes
- (1) ii905 Main Body
- (1) Hand Strap
- (2) Sensor Array Cover
- (1) Sensor Array
- (1) Neckstrap
- (1) USB-C Cable
- (1) BP291
- (1) Battery Charger
- (1) EDBC290
- (1) SB140 Sound Beacon
- (1) 9 V Battery
- (1) Soft Case
- (1) Accessory 1 inch probe
- (1) Instruction Sheet
- (1) Warranty Card
Fluke 6053114 Features
- High resolution 7″ capacitive touchscreen
- WiFi and USB-C connectivity
- 32 GB memory/storage capacity
- Blended visual and SoundMap image format
- Up to 5 minutes video recording
- Leak size scale, rate, and cost estimation
- Operation distance up to 70 meters
- Ergonomic design with adjustable hand and neck straps
- Customizable profiles for different inspection types
- On-device real-time data
Fluke 6053114 Specifications
| Display Type: | 7″ LCD |
| Resolution: | 1280 x 800 |
| Frequency Range: | 2 to 65 kHz |
| Operating Temperature Range: | -10 to 45C |
| Field-of-View (FoV): | 63 ± 5 Degrees |
| Nominal Frame Rate: | 25 FPS |
| Zoom: | 3 x digital zoom |
| Touchscreen: | Capacitive |
| Memory/Storage Capacity: | 32 GB |
| Image Format: | Blended visual and SoundMap .JPG or .PNG |
| Video Format: | Blended visual and SoundMap .MP4 |
| Save Video: | Up to 5 minutes |
| Operation Distance: | Up to 70 meters |
| Battery Life: | > 300 hours |
| Power Supply: | 9-volt alkaline (included) |
